Industrial mini pc intel core i5 4200U i7 4500U 4650U with 6COM RS232 RS422 RS485 HDMI VGA GPIO LPT ports for medical industry
 |
| Industrial mini pc intel core i5 4200U i7 4500U 4650U with 6COM RS232 RS422 RS485 HDMI VGA GPIO LPT ports for medical industry |
You are looking for "Industrial mini pc intel core i5 4200U i7 4500U 4650U with 6COM RS232 RS422 RS485 HDMI VGA GPIO LPT ports for medical industry" , this product is ready to be purchased. don't forget to bookmark this site, so you can come back here anytime. Get special discount by shopping on aliexpress site, because new buyers will get a decent discount coupon. To buy this product, please click the buy link bellow.
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -21% |
| Product id | 4000077135598 |
| Vendor | INCTEL Technology Co.,Limited |
| Category | Computer & Office - Mini PC |
Description :
Processor has 2 options suitable for the same motherboard:
1. Haswell 22nm CPU Intel Core i7 4500U 2 cores 4 threads 1.8Ghz Max to 3.0Ghz 4MB cache TDP 15W Intel HD graphic 4400.
2. Haswell 22nm CPU Intel Core i5 4200U 2 cores 4 threads 1.6Ghz Max to 2.6Ghz 3MB cache TDP 15W Intel HD graphic 4400.
How to select Configuration?
For example:
1. You click " No Storage No Storage" from Color and "CPU i7 4500U 4650U" from Bundle, we will ship the mini pc with processor i7 4500U or i7 4650U but no ram no storage included and No O/S to you.
2. You click "8GB Ram 256GB SSD" from Color and "CPU i5 4200U 4300U" from Bundle, we will ship the mini pc with processor i5 4200U or i5 4300U 8GB Ram 256GB SSD and Windows preinstalled to you.
Industrial Mini PC Intel Core i7-4500U/4650U i5-4200U/4300U Processors, support Windows 10, Windows 8.1, Windows 7, Linux & Ubuntu
Support dual storage 1*mSATA +1*2.5inch SATA SSD/HDD, 4*USB 3.0, 4*USB 2.0 ( total 8x USB prots ),
Dual Intel Gigabit Ethernet LAN ports, Mini PCI-E WiFi 802.11b/g/n(Buletooth optional ), 6x RS232 Serial Ports ( 2x RS485/RS422 optional
HDMI & VGA Dual Display, Aluminum Chassis & Fanless passive Cooling & Zeor Noise & Energy saving,
Watch Dog function, Auto power on, RTC Wake up, Support 3G/4G module and SIM card
1. Main characteristics
2. Working environment
Working temperature: -10 ° C ~ +60 ° C

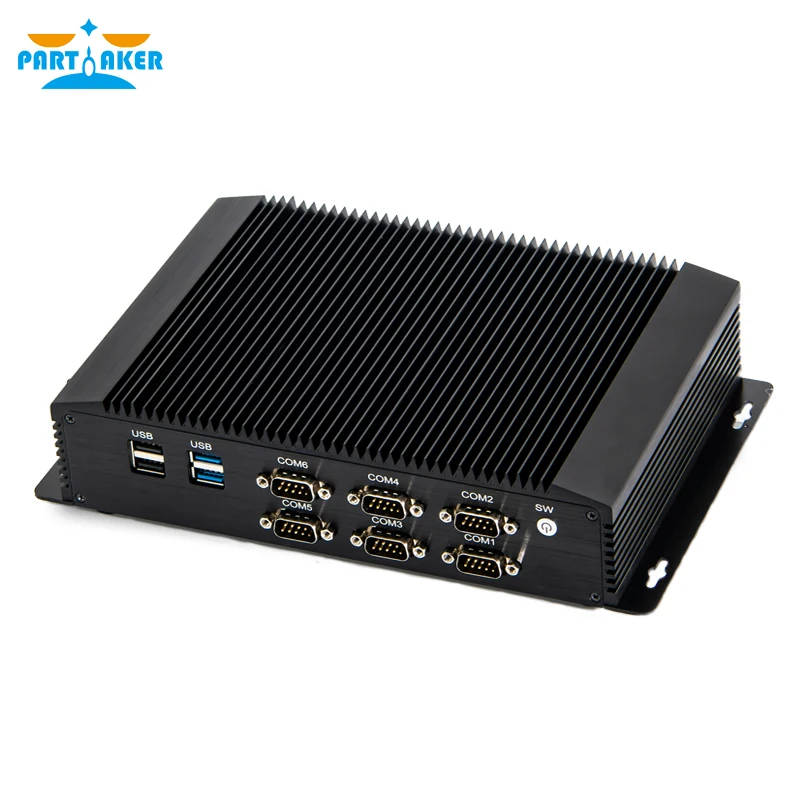

Front panel interface
From left to right are:
Gigabit RJ45+ dual USB2.0 interface

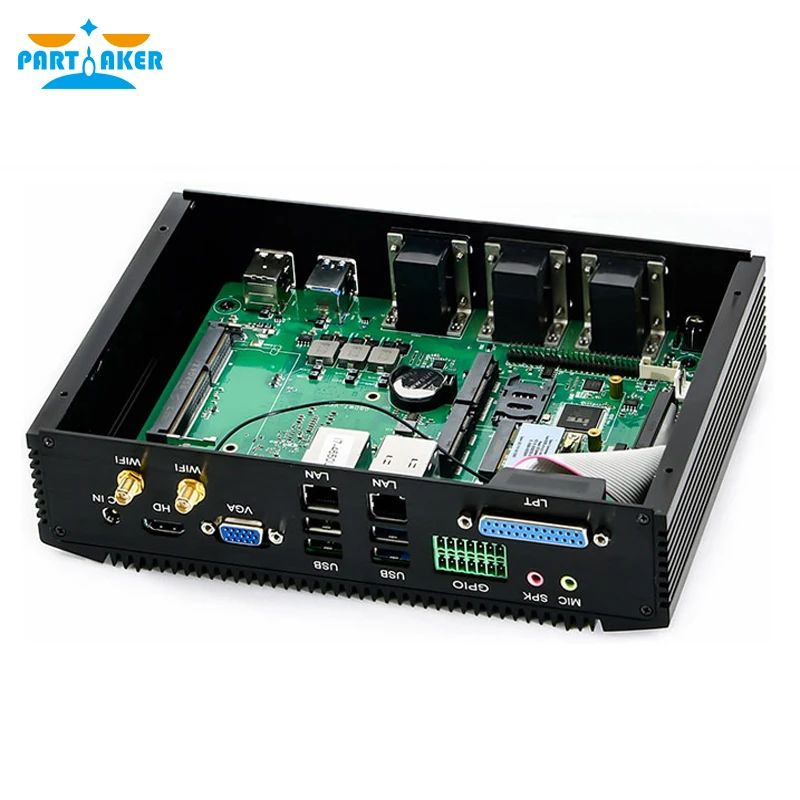

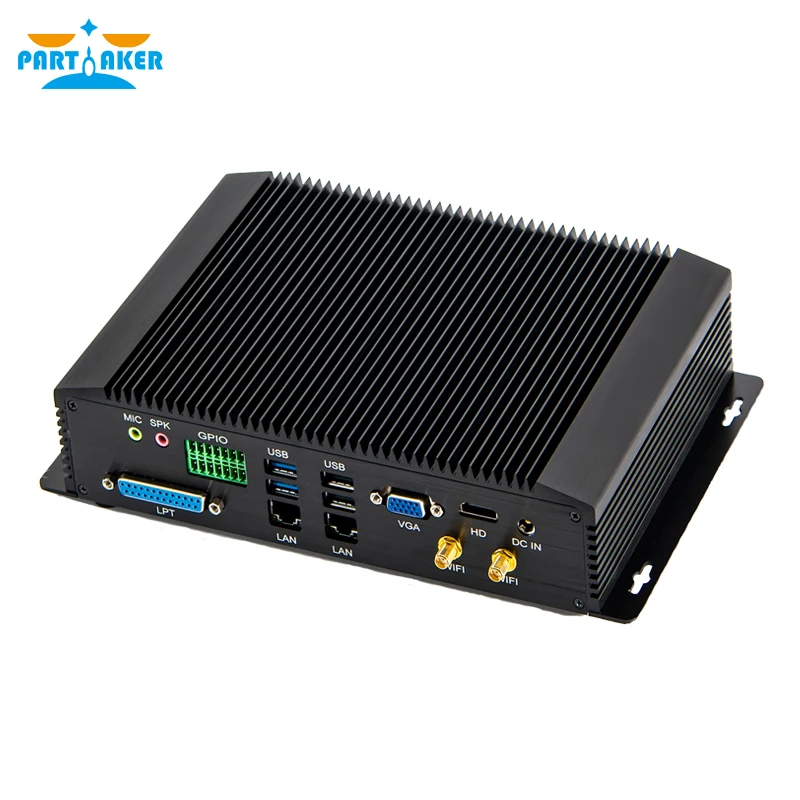

Rear panel
From left to right are:
RS232 mode definition：
| Pin number | Pin definition |
| 1 | DCD# |
| 2 | SIN |
| 3 | SOUT |
| 4 | DTR# |
| 5 | GND |
| 6 | DSR# |
| 7 | RTS# |
| 8 | CTS# |
| 9 | Optional |
RS485 mode definition：
| Pin number | Pin definition |
| 1 | RS485- |
| 2 | RS485+ |
| 3 | NC |
| 4 | NC |
| 5 | GND |
| 6 | NC |
| 7 | NC |
| 8 | NC |
| 9 | Optional |
RS422 mode definition：
| Pin number | Pin definition |
| 1 | RS422-TX- |
| 2 | RS422-TX+ |
| 3 | RS422-RX+ |
| 4 | RS422-RX- |
| 5 | GND |
| 6 | NC |
| 7 | NC |
| 8 | NC |
| 9 | Optional |
1.1 COMSEL1 / COMSEL2
| Pin number | Pin definition | Pin number | Pin definition |
| 1 | RI | 2 | COM1 9th pin |
| 3 | +5V | 4 | COM1 9th pin |
| 5 | +12V | 6 | COM1 9th pin |
| Pin Number | Pin definition |
| 1 | SPKOUT_L+ |
| 2 | SPKOUT_L- |
| 3 | SPKOUT_R- |
| 4 | SPKOUT_R+ |
| Pin number | Pin definition |
| 1 | GND |
| 2 | +12V |
| 3 | FAN_FB |
| 4 | PWM |
Fore more details, warmly contact us.
Free Operating System: Default installed our activated OEM cracked version(not genuine, works good)Windows English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install, defalut is english version. Other systems we can install free are like Linux, XBMC(Kodi), Ubuntu, Openelec etc if you need. Seller is irresponsible and makes no compensation for cracked system.

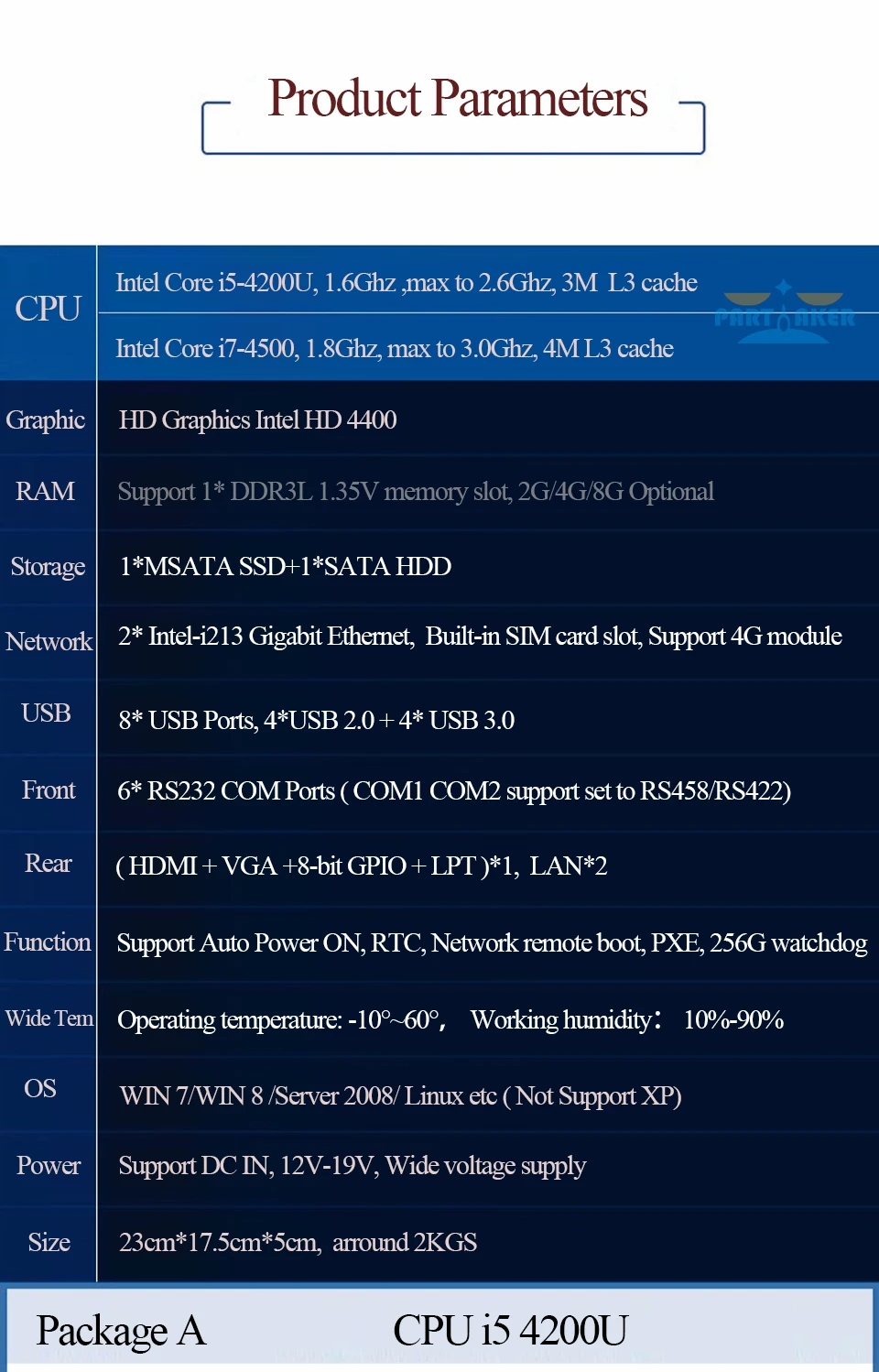

General
CPU
Optional
i7 4500U/4650U or i5 4200U/4300U
Core (FSB)
100MHz
CPU Technique
22nm
L1 Cache
2 x 32 KB, 8-Way, 64 byte lines
L2 Cache
2 x 256 KB, 8-Way, 64 byte lines
L3 Cache
3 MB, 12-Way, 64 byte lines
MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, HTT, EM64T, EIST, Turbo Boost
Motherboard
Intel CRESCENTBAY ( Lynx Point-LP )
BOIS
American Megatrends Inc. 5.6.5
Chipset
Intel Haswell
Memory
1* SO-DIMM DDR3L Slot
Support 4GB/8GB
DDR3L 1333/1600, LPDDR3 1333/1600
Storage
1*MSATA SSD: 8G/16G/32G/64G/128G/256G/512G/1TB
1*SATA HDD: 160G/320G/500G/1TB
Operating System
Windows 7/Windows 8/Windows 10/Linux
Audio
ALC662 HD Audio(Line-in, Line-out, Mic-in)
Intel Lynx Point-LP HD Audio Controller
Network
Onboard Intel i211 Gigabit Network Connection
10/100Mbps/1000Mbps BaseT LAN
Video
Intel Haswell- ULT Integrated Graphics Controller
Intel HD Graphics 4400
I/O port
front panel ports
2*USB3.0, 2*USB2.0, 1* Switch, 6*RS232 COM
Backside ports
2*USB3.0, 2*USB2.0, 1*HDMI, 1*VGA, 2*LAN, 1*GPIO, 1*LPT, 1*MIC, 1*SPK, 1*DC IN, 2*Wi-Fi
COM
6*RS232(3 line), COM1 COM2 support set to RS458/RS422
Internal ports
1*M-SATA3.0 port, support 6Gb/s
1*SATA3.0 port, support 6Gb/s
1*mini PCIE-half(Pcie bus) port for WiFi module
1*mini PCIE-full(Usb bus) port for 4G module
SIM slot
Micro SIM, with PUSH function
Power and Working Environment
Input
DC100-240V AC/50-60Hz
Output
12V/5A
Operating Temperature
-20/+75 Centigrade
Storage Temperature
-40/+80 Centigrade
Relative Humidity
0%~90% (non-condensing)
Product Dimension & Details
Size
230*175*50mm
Weight
2.5KG
Consumption
15W
Shell
Black
Package Content
1x Mini PC
1x Power Adapter (Correct plug shipped based on buyer's country)
1x WiFi Module with antennas
1x SATA cables
1xHDMI cable(as gift)
1. According Newest Aliexpress Business Service Agreement informs all products should be showed real price to customs because buyers are responsible for paying tax involved, such as import tax, VAT, etc.
2. Due to the tax problem, buyer refuse to receive the goods, buyer need to responsible for the freight back and forth. Thank you for your cooperation.
3. According to customs rules in Russia, we have to write real price to customs.and buyer have to offer passport information, personal VAT number and link of product to local customs for clearance. Thanks.
4. For German customers, please note that German custom decide to implement the single customs clearance costs for e-commerce goods from Mar.1 2018. Deutsche Post DHL will charge an additional fee of 6 EUR / set (including VAT) for taxable and hospitality tax on incoming mail.
5. For Swedish customer, please note that the Swedish Customs decided to impose VAT on all non-EU e-commerce items (including mail) starting March 1, 2018. The implementation of zero-value-added tax threshold, does not distinguish between the level of value, the recipient VAT. If the value of the goods is less than 150 euros, Sweden Post will charge 7.5 euros for services, more than 150 euros, for 12.5 euros service charges e-commerce items.
6. For Brazil customer, please note that the Brazil Customs decided to charge a fee of 15 reais (about 3.5 US dollars) per order for all international parcels handled by the customs from August 27, local time.You have to pay it within 30 days, otherwise the package will be returned or destroyed. For that, we wont do money refund.
7. To European union(28 counties) we have XINNUO or YUNTU shipping which will pre-paid taxes in our side which means no need pay taxes when goods received, the delivery time need 8-15 days to GB, France, Italy, Spain, Germany etc.Contact us if you need this service.
1. We prefer payment through ESCROW which is security way for you.
2. Pls make sure the shipping address, zip code and tel-number are correct before payment.
3. The buyers are responsible for all additional custom fees, brokerage fees, duties and taxes for importation into your country.
4. We also can accept the payment by Paypal if you think Paypal is convenient for you to order. But now only can ship to USA, UK, Italy, Spain, France, Germany.
5. Welcome to contact us by chat tool directly or leave a message if you order in bulk.
6. Refund will be done by Paypal.
1. All items will be double checked and well packed and they will be dispatched within 5 business days when order is paid.
2. Normally we ship package by DHL, it will take about 3~7 working days to most of countries, door to door.
3. If you address is a remote area by DHL, if you do not add remote area shipping fee, we will arrange shipment by our methods, hope you can kindly understand it, thanks.
4. e-EMS: it is for Russia and some other countries.
5.If you choose the shipping way is air post mail , it normally takes 30-90 days without tracking information , pls noticed. It's better to choose EMS or DHL , more faster and safe .
6. If you don't get the package in normal time, please contact us kindly, we will do our best to assist you.
7. If you don't accept above terms, pls do not buy it, thanks.
1. We provide 1-3 year warranty period, repair or replace for free; the second year and the third year, we can repair it free. but we will charge for the parts that need to change.
2. If you are not satisfied with the item and want to return it reasonably, please contact us kindly first. We will try our best to deal with the issue for you or you can exchange or return the item in one week.
3. All returned items must be in its original conditions. Anthropogenic causes as defects are not guaranteed.
4. If you want to return the item, pls confirm the return address with us, we only accept EMS or Post for return product. Thanks.
5. If the product break down, please contact us.
1. We maintain high standards of excellence and strive for 100% customer satisfaction!
2. If you are satisfied with them, please lease 5 star positive feedback
3. Negative feedback or low DSR does no resolve any underlying issues. If you have a problem, please contact us via email firstly and give us the opportunity to reasonably rectify in a reasonable amount of time. We will try to respond ASAP, and we are always willing to work things out.
4. For some uncontrollable factors, the item may be damaged during shipping. If you receive a broken item, please contact us first, we will investigate and replace, if you have any other questions please email us. we will respond within 24 hours or less.
