QOTOM Fanless Mini PC Q190S with BayTrail j1900 Processor Quad Core up to 2.42 GHz, Dual LAN Mini PC Linux
 |
| QOTOM Fanless Mini PC Q190S with BayTrail j1900 Processor Quad Core up to 2.42 GHz, Dual LAN Mini PC Linux |
You are looking for "QOTOM Fanless Mini PC Q190S with BayTrail j1900 Processor Quad Core up to 2.42 GHz, Dual LAN Mini PC Linux" , this product is ready to be purchased. don't forget to bookmark this site, so you can come back here anytime. Get special discount by shopping on aliexpress site, because new buyers will get a decent discount coupon. To buy this product, please click the buy link bellow.
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -5% |
| Product id | 32693106938 |
| Vendor | qotom Official Store |
| Category | Computer & Office - Mini PC |
Description :
Specification
| size | S01: 135 x 128 x 38mm S02: 135 x 128 x 45mm | ||
| Net weight | 650g | ||
| Color | Black | ||
| Onboard CPU
| Intel Celeron J1900 processor (quad core 2 GHz, up to 2.42 GHz) | ||
| Memory | - 1333MHz/1600MHz DDR3L 1.35V SO-DIMM Memory, Non-ECC | ||
| Storage | S01: 1 x mSATA port S02: 1 X mSATA SSD and 1 x 2.5" SATA SSD/ HDD | ||
| Processor Graphics | Intel HD Graphics | ||
| LAN | 2 x RJ-45 port | ||
| Wireless | Optional ( 802.11 b/g or 802.11 b/g/n) | ||
| Bluetooth | Optional | ||
| Audio | Realtek ALC662 HD Audio | ||
| Power Consumption | 10W, running 24/7. | ||
| Front-Panel Connectors | • 1 x Power switch button ( Power LED ) • 1 x USB3.0 ports • 1 x Microphone port | ||
| Back-Panel Connectors | • 1 x 12V DC input • 2 x RJ-45 port • 1 x Speaker port | ||
| Operating System | Support Windows 7/ 8/ 10, Linux, pfSense, etc. |
[8]
Operating System
Mini PC Q190S supports Windows 7/ 8/ 10, Linux, pfSense, Sophos, VyOS, Linux iptables, Untangle, ect. But it will come with inactive Windows 7 for test and we don't provide any Windows license. You also can install OS and software package by yourself. F11 key boot from USB Drive. Delete key enter BIOS.
Mini PC Q190S can not support Windows XP!
If you need Windows Drivers or motherboard user manual, please leave a message.
2 Versions: S01 & S02
Mini PC Q190S have 2 versions, S01 & S02, same motherboard but different PC case. S01 only support 1 x mSATA SSD, S02 can support 1 x MSATA SSD and 1 x 2.5" SATA SSD/ HDD at the same time. If you choose S02, the packaging box will contains a SATA cable.

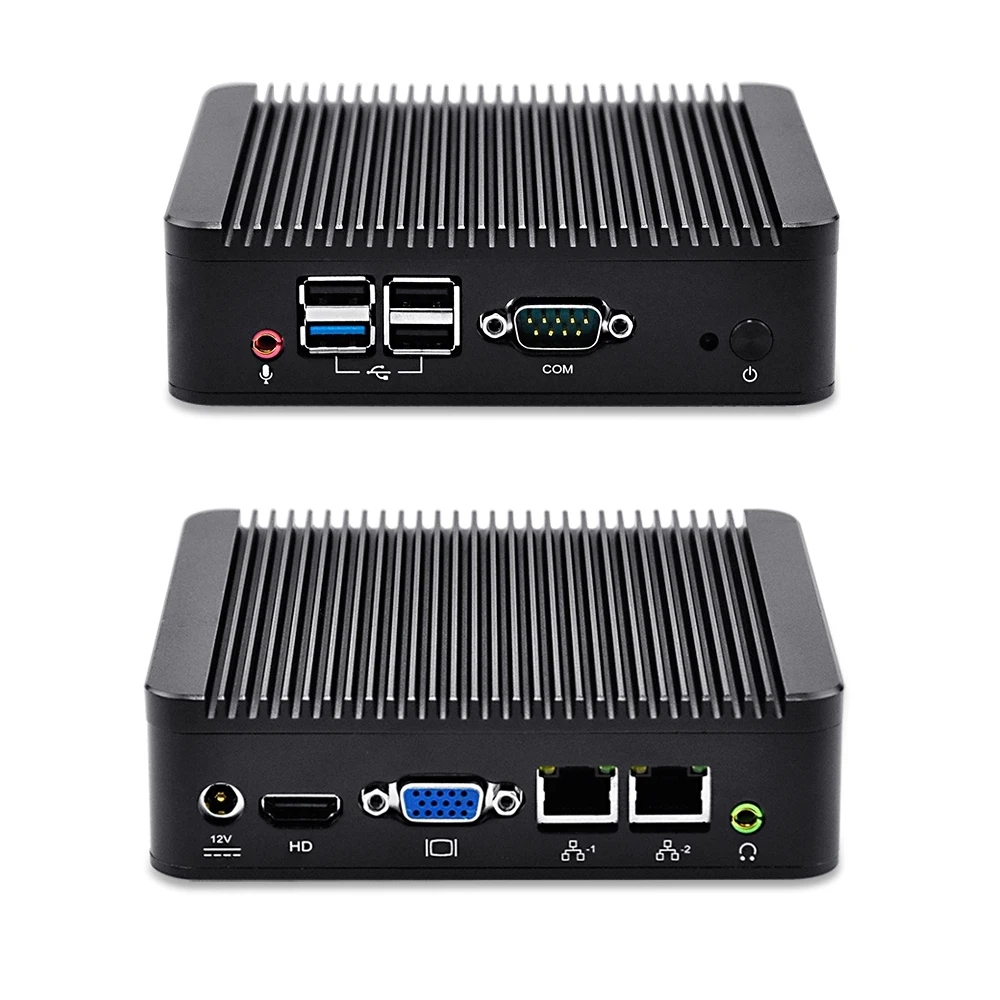

Mini PC Q190S-S01:
Mini PC Q190S-S02:

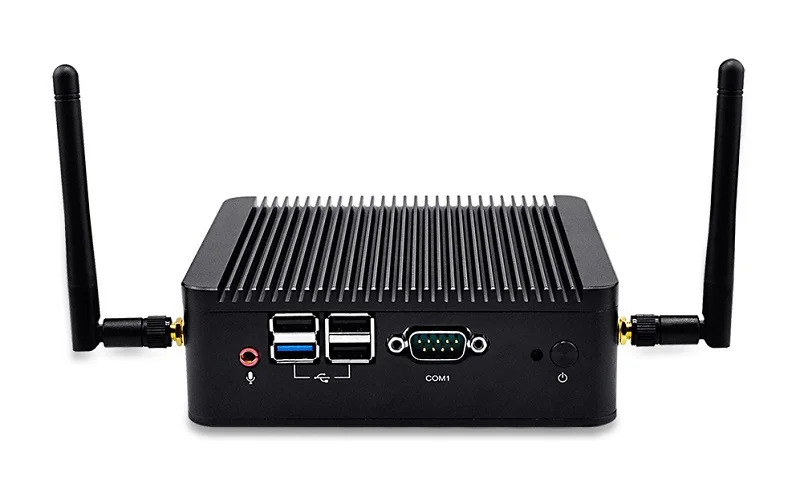

More pictures:

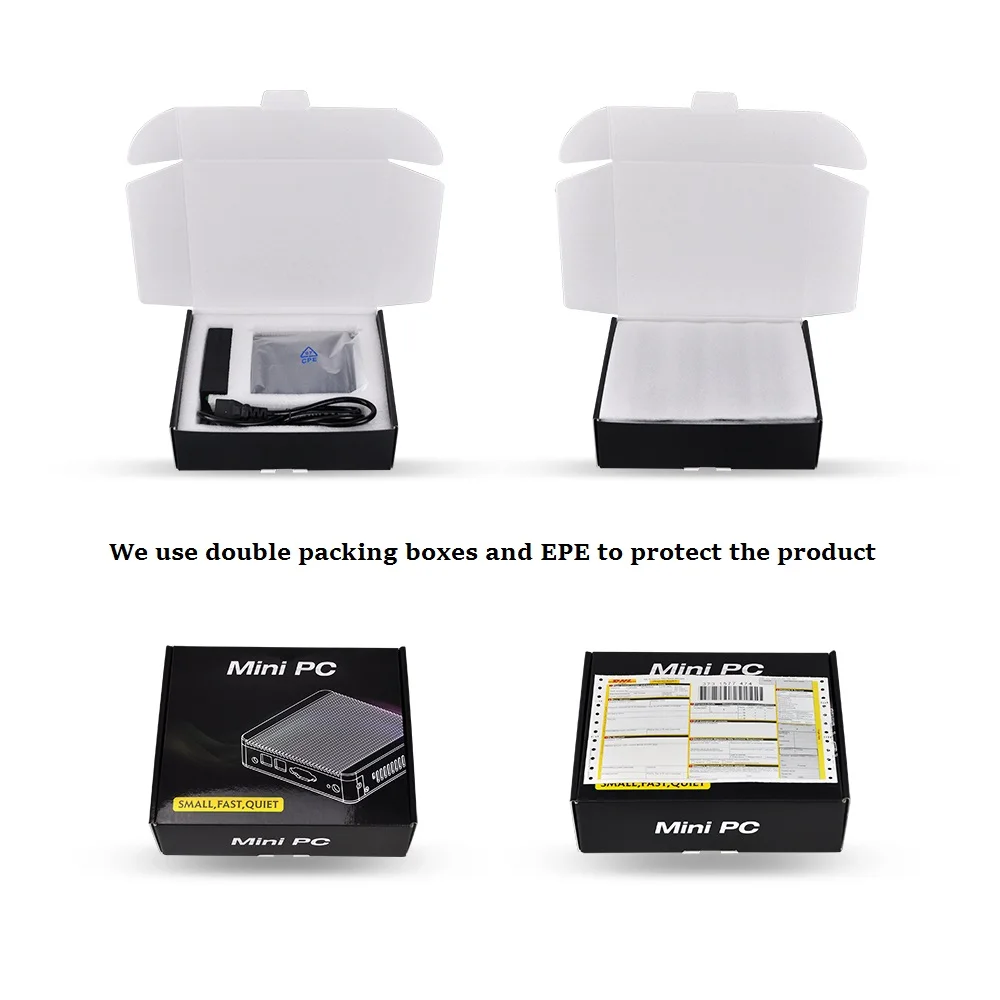

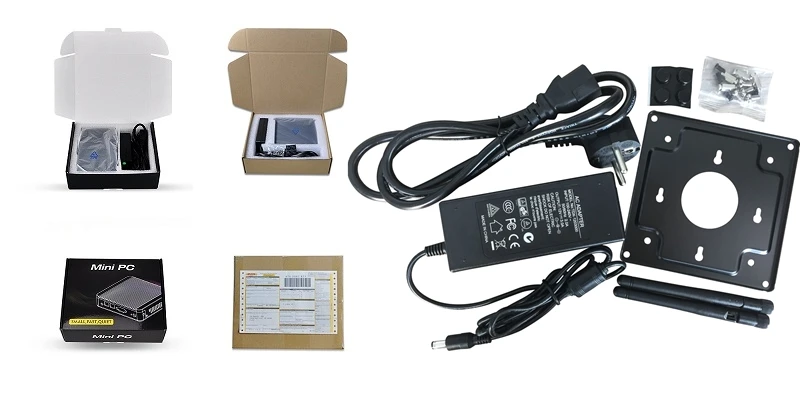

Packing
1 x Mini PC
1 x Power supply (12V 3A adapter and plug)
1 x VESA bracket
2 x Antennas (If you choose wifi)
1 x SATA power cable for 2.5" SATA SSD/ HDD (If you choose S02)
Some screws for VESA and SATA
1 x color box by default, if you prefer to neutral packing, please leave message.
You can leave message to require for Motherboard User Manual and Windows drivers download link.
Warranty
Mini PC Q190S is designed and produced by QOTOM. We provide One Year Warranty. Please contact me if necessary, leave message online or contact us by email.
(If you contact salesperson by email, please provide the order number)
