Qotom Mini PC Q500G6-S05 with Celeron Core i3 i5 i7 AES-NI 6 Gigabit NIC Router Firewall Support Linux Ubuntu Fanless PC
 |
| Qotom Mini PC Q500G6-S05 with Celeron Core i3 i5 i7 AES-NI 6 Gigabit NIC Router Firewall Support Linux Ubuntu Fanless PC |
You are looking for "Qotom Mini PC Q500G6-S05 with Celeron Core i3 i5 i7 AES-NI 6 Gigabit NIC Router Firewall Support Linux Ubuntu Fanless PC" , this product is ready to be purchased. don't forget to bookmark this site, so you can come back here anytime. Get special discount by shopping on aliexpress site, because new buyers will get a decent discount coupon. To buy this product, please click the buy link bellow.
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -15% |
| Product id | 32955679364 |
| Vendor | qotom Official Store |
| Category | Computer & Office - Mini PC |
Description :
Product Description
(Mini PC Q510G6 / Q515G6 / Q530G6 / Q550G6 have same aluminium metal shell and ports, except CPU.)
| Onboard CPU | Q515G6: Intel 7th Gen Celeron 3865U Kaby Lake Dual Core Processor, 2M Cache, 1.80 GHz. Intel® HD Graphics 610 |
| Q535G6: Intel 7th Gen Core i3-7100U Kaby Lake Dual Core Processor, 3M Cache, 2.40 GHz. Intel® HD Graphics 620 | |
| Q555G6: Intel 7th Gen Core i5-7200U Kaby Lake Dual Core Processor, 3M Cache, 2.50 GHz, up to 3.10 GHz. Intel® HD Graphics 620 | |
| Q575G6: Intel 7th Gen Core i7-7500U Kaby Lake Dual Core Processor, 4M Cache, 2.70 GHz, up to 3.50 GHz. Intel® HD Graphics 620 | |
| LAN Chipset | 6 x Intel I211-AT Gigabit LAN |
| Processor Graphics | Chipset: By CPU |
| CPU TDP: 15W | |
| Audio: No | |
| Security | AES-NI: Yes |
| Watch Dog: Yes | |
| Kensington Lock: Support | |
| Environmental | Operating Temp: 0°C~50°C |
| Non-Operating Temp: -20°C~80°C | |
| Humidity: 10%~90% | |
| Mechanical | Material: Aluminum |
| Cooling Mode: Fanless Design | |
| Mounting: VESA Mounting Bracket |
Interfaces Description
External Interface
Internal Description
| Mini-PCIe: 1 x Mini-PCIe for Option (USB Signal), 1 x Full-length for 3G Half-length for Wi-Fi Module by Default |
| mSATA: 1 x Full-length Mini-PCIe for SSD |
| GPIO: 1 x 2.0 Pitch Header |
| RS-485/RS-232: 2 x RS-485, 1 x RS-232 (Optional) |
| Automatically Boot Jumper: 1 |
| SIM Card Slot: 1 |
| DC-in: Header (Optional) |
| DC Jack: 5.5mm, 2.5mm |
Dimension Description
Operating System
1) If the product is with RAM and SSD, it comes with pre-install unactivated Windows 7 in English for test, and we DO NOT provide any Windows license.
You also can install OS and software package by yourself. Press F11 key boot from USB Drive, press Delete key enter into BIOS.
2) We can provide Windows drivers download link and motherboard user manual download link.
3) This pfSense appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security.
WiFi & 3G / 4G Module
1. Part ① is Mini PCI-e slot for WiFi (/Bluetooth) / 3G/4G Module.
Part A: Half-length Mini PCI-e is only for WiFi (/Bluetooth);
Part B: Full-length Mini PCI-e is only for 3G/4G Module.
2. Part ② is 1 x SIM card socket.
3. Part ③ is full-length Mini PCI-e slot for mSATA SSD (Support 1 x mSATA SSD, 1 x 2.5" SATA SSD/HDD).
4. Part ④ is 1 x DDR4 RAM socket (1.2V, Up to 16GB).
Pls Note:
1. Mini PCI-e cann't be supported WiFi and 3G/4G module as the same time in this computer.
It supports WiFi (USB Signal) by default. If you want to choose 3G/4G function, pls leave a message.
2. We don't provide SIM card and 3G/4G module.
3. Q500G6 can support USB WiFi or ordinary WiFi.
1) USB signal WiFi is supported in Q500G6 by default, and there are 6 x NIC ports to work.
2) If you need ordinary WiFi in Q500G6, LAN 6 doesn't work (only 5 x NIC ports to work), and it needs to be changed another BIOS.

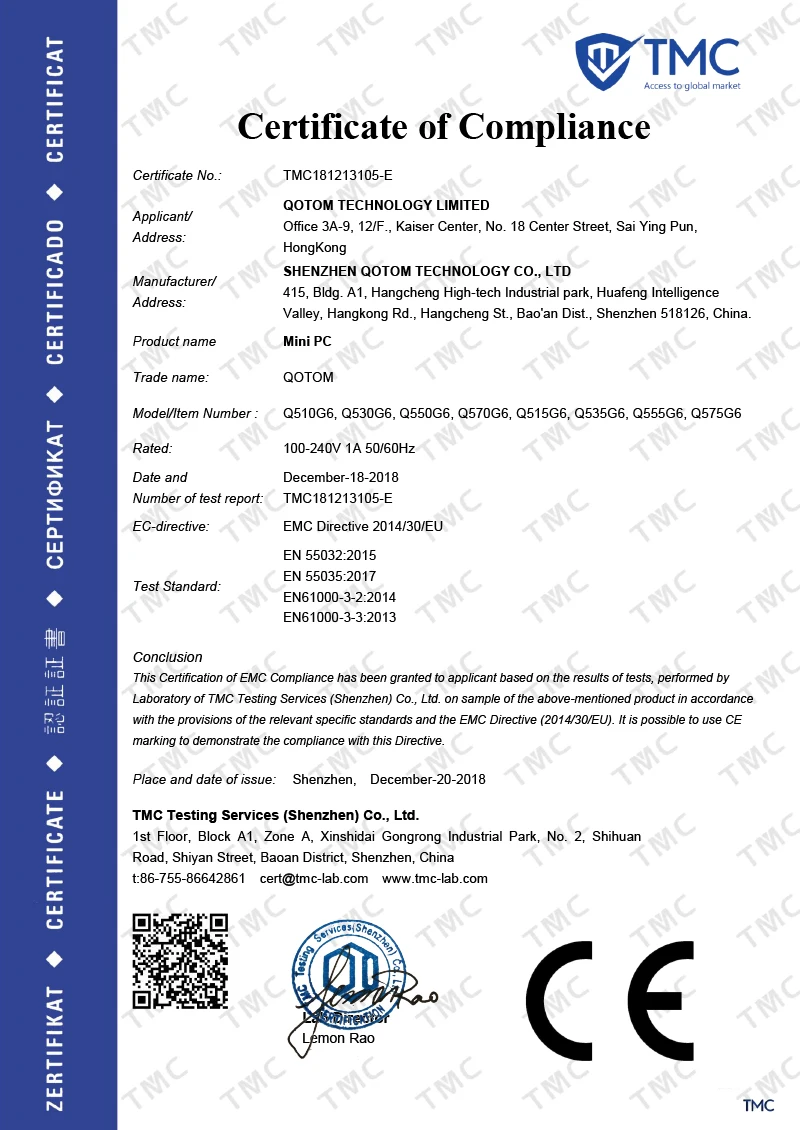

CE Certificate
