Qotom Mini PC Computer with baytrail j1900 X86 Mini Desktop PC pfsense Firewall Fanless PC 4 LAN Q190G4N
 |
| Qotom Mini PC Computer with baytrail j1900 X86 Mini Desktop PC pfsense Firewall Fanless PC 4 LAN Q190G4N |
You are looking for "Qotom Mini PC Computer with baytrail j1900 X86 Mini Desktop PC pfsense Firewall Fanless PC 4 LAN Q190G4N" , this product is ready to be purchased. don't forget to bookmark this site, so you can come back here anytime. Get special discount by shopping on aliexpress site, because new buyers will get a decent discount coupon. To buy this product, please click the buy link bellow.
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -15% |
| Product id | 32805616268 |
| Vendor | qotom Official Store |
| Category | Computer & Office - Mini PC |
Description :
Shipment & clearance :
PS: For remote address,carrier will charge for additional remote delivery cost.
DHL/ Fedex express:
1.Generally, you need to waite 2-5 workdays.
2. Buyer need to work with carriers to pay taxes/duties for clearance .We will also urge you to fix the issue.
Yun Express (Seller's shipping method)
For European Union countries like Poland, Hungary, Belgium, Denmark, the Netherlands, Austria, Finland, Ireland, Portugal, Sweden, Spain, Italy, France, Germany etc.
1.Generally, you need to waite 10~20 days
For Russia:
We ship by J-NET/ Epacket.
Specification:
| Item Name | Q190G4N |
| Dimension | S07: 156*128*37mm only Support Msata SSD S08: 156*128*47mm Support 2.5" HDD and Msata SSD |
| Consumption | 10w |
| Processor | Intel Celeron Processor J1900(Quad-Core 2M Cache,2 GHz, up to 2.42 GHz) |
| Memory | only Support DDR3 1333/1600 MHz 1.35V |
| Hard Disk | mSATA/SATA SSD |
| Processor Graphic | intel HD Graphics |
| LAN | 4 x Intel I211-AT Gigabit LAN
|
| Gross Weight | 2KG |
| WiFi( optional) | USB Signal Wifi (if you choose wifi,pc comes with 2 pigtails) |
| Audio Solution | Realtek ALC662 6-Channel HD Audio |
| Front-Panel | power on/off |
| Rear-Panel | 1 × DV 12V input |
| Operating System | Preinstall unactivated Win7, optional windows 8/10/Linux /pfsense etc. |
Q190G4N-S07: 156*128*37mm(L*H*W)
Q190G4N-S08: 156*128*47mm(L*H*W)
Only one Mini PCIE slot:
Half Mini PCIE for WiFi ( by default)or Full Mini PCIE for 3G/4G module
We do not provide 3G/4G Module ,so if you prepare to install 3G/4G Module ,we will remove the screw for a full Mini PCIE slot and provide a WIFI extension plate.
If you wanna use Pfsense and our WIFI at the same time,you need to change pfsense settings into access point mode,or else pls reinstall other system.Becuse our wifi do not function well with Pfsense.
Why only support USB signal wifi?
It only support USB signal WIFI in that there is only 4 sets PCIE channels but every wireless card need one PCIE channel. Barely WIFI Modem be able to support Mini PCIE WIFI except RT3070. In addition,Some customers are be able to edit drivers procedure themselves and debug it,so we supply SKU with WIFI option. Actually,we will tell them if customers consult about these information.The slot design is aim to support 4G function in that USB signal is enough for 4G modem.

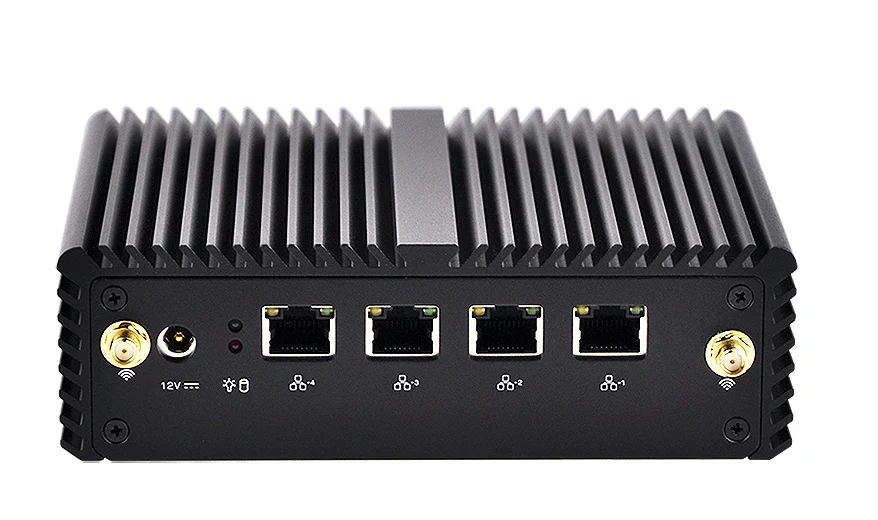

LAN Ports:
The 4 ports are labeled WAN, LAN, OPT1 and OPT2. when you are using pfsense, Actually the ports should be 1, 3, 4, 2. If you need only WAN and LAN, pls the first port for WAN and the last port for LAN.
User manual or windows drivers :
Leave me a message and provide your email address. i will send it to you asap.
CE Certificate：
Package List :
12V3A power adapter and plug cord
SATA power cable for 2.5" SATA SSD/ HDD
VESA bracket
2 Wi-Fi antennas (if you choose wifi)
Some screws for VESA and SATA
