10.4 LCD Rreplace HMI Display Industrial PC With Touch Screen
 |
| 10.4 LCD Rreplace HMI Display Industrial PC With Touch Screen |
You are looking for "10.4 LCD Rreplace HMI Display Industrial PC With Touch Screen" , this product is ready to be purchased. don't forget to bookmark this site, so you can come back here anytime. Get special discount by shopping on aliexpress site, because new buyers will get a decent discount coupon. To buy this product, please click the buy link bellow.
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -15% |
| Product id | 32415304778 |
| Vendor | STONE Official Store |
| Category | Electronic Components & Supplies - Optoelectronic Displays |
Description :

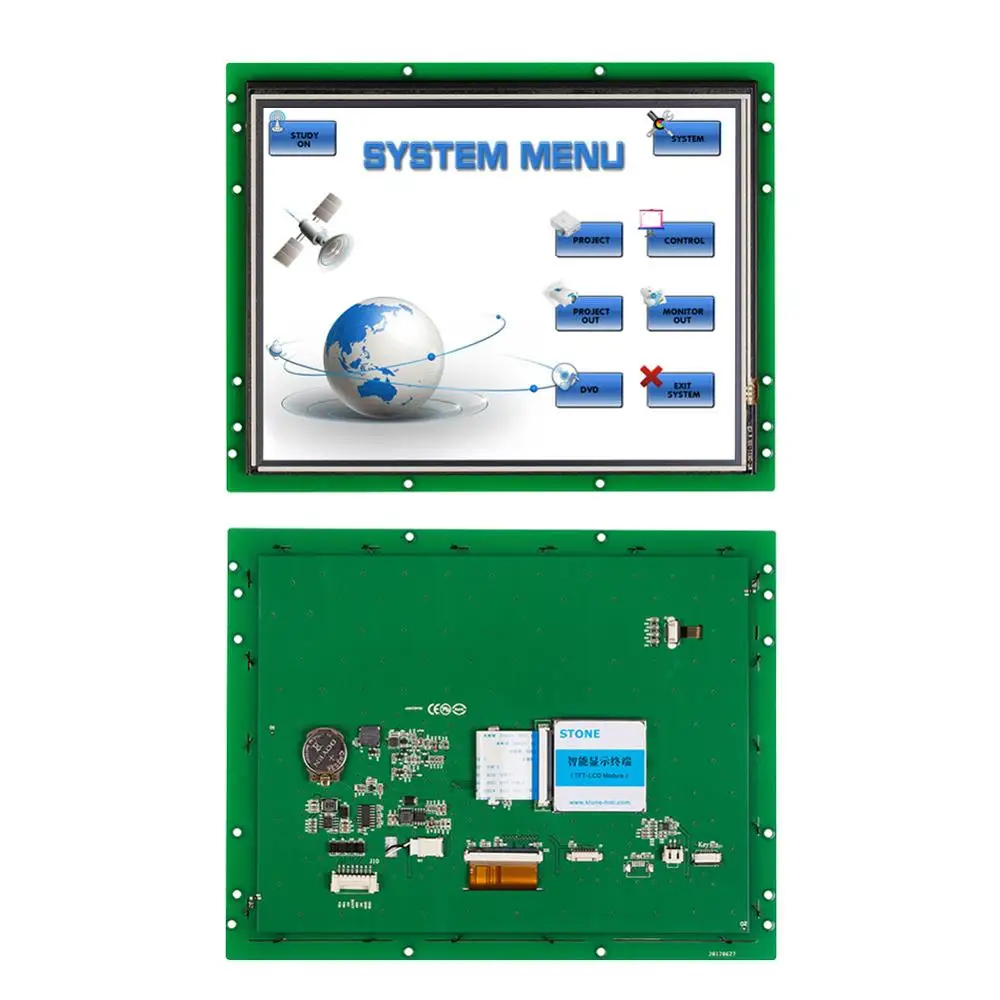

10.4 LCD Rreplace HMI Display Industrial PC With Touch Screen
Product Parameters
Physical Parameter
| Model | STVI104WT-01 |
| Size (Inch) | 10.4" |
| Resolution | 800×RGB×600 |
| Color | 65536 colors (16 bit) |
| Viewing Area | 211.2 mm × 158.4 mm |
| Pixel Spacing | 0.1905 mm × 0.0635 mm(H×V) |
| Overall Dimension | 247.8mm×193.7mm×15.8mm(N)/17.4mm(T) |
| Net Weight | 765 g(N)/ 805 g(T) |
| TFT Panel | A+ Class Industry Panel |
| Touch Screen | Industry Level 4 wire resistance Or without touch screen is optional. |
Backlight Parameter
| Backlight Type | LED |
| Brightness | 350 cd/m2(Brightness can be adjustable in 100 levels.) |
| Contrast | 500:1 |
| Backlight life | 30,000 hours |
| Viewing Angle | 70°/ 70°/ 50°/ 60° (L/R/U/D) |
| Working Temperature | -20°C ~ +70°C |
| Working Humidity | 55°C, 85% |
| Storage Temperature | -30°C ~ +85°C |
| Screen Mode | Digital |
Performance Parameter
| CPU | CortexM4 |
| LCD Controller | CPLD EPM240 |
| Refresh Rate | 200MHz |
| Picture Switching Speed | 47 ms/picture (21 pictures/s) |
| Flash Memory | Standard 128m, Extension 1GB |
| Memory Amount for picture | According to the capability of the image, Suggest "JPG" format |
| Interface | RS232/ USB Interface |
| Pictures downloading | USB2.0 (12Mbps) & U storage Disk downloading |
| Voltage Range | DC6.0V ~ 40V (typical value: 12V) |
| Power | 3.0W |
Test Report
| MTBF | 4,250,000H |
| Working Temperature | -20°C ~ +70°C |
| Air Humidity | 60°C, 90% |
| Continuous Vibration Testing | 10-55Hz, 1.5mm, 10G |
| Impact Acceleration Testing | 6ms, 100G |
| ESD Testing | 10KV |
| Radiation Reliability Testing | 44W |
Main Size of TFT LCD Module
| Size | Resolution |
| 3.5'' | 320*240; 320*480 |
| 4.3'' | 480*272 |
| 5'' | 480*272; 640*480; 800*480 |
| 5.6'' | 640*480 |
| 5.7'' | 640*480 |
| 7'' | 800*480; 800*600; 1024*600 |
| 8'' | 800*600; 1024*768 |
| 9.7'' | 1024*768 |
| 10.1'' | 1024*600 |
| 10.4'' | 800*600 |
| 12.1'' | 1024*768 |
| 15.1'' | 1024*768 |
