Qotom Pfsense Mini PC i5 i3 Micro Computer Linux Ubuntu Fanless Mini PC Server Dual Core Firewall ASE-NI Industrial Computer
 |
| Qotom Pfsense Mini PC i5 i3 Micro Computer Linux Ubuntu Fanless Mini PC Server Dual Core Firewall ASE-NI Industrial Computer |
You are looking for "Qotom Pfsense Mini PC i5 i3 Micro Computer Linux Ubuntu Fanless Mini PC Server Dual Core Firewall ASE-NI Industrial Computer" , this product is ready to be purchased. don't forget to bookmark this site, so you can come back here anytime. Get special discount by shopping on aliexpress site, because new buyers will get a decent discount coupon. To buy this product, please click the buy link bellow.
| Name | Details |
|---|---|
| Buy now just | |
| Discount | |
| Product id | 32829490316 |
| Vendor | qotom Official Store |
| Category | Computer & Office - Mini PC |
Description :
Shipment & clearance :
PS: For remote address,carrier will charge for additional remote delivery cost.
DHL/ Fedex express:
1.Generally, you need to waite 2-5 workdays.
2. Buyer need to work with carriers to pay taxes/duties for clearance .We will also urge you to fix the issue.
Yun Express (Seller's shipping method)
For European Union countries like Poland, Hungary, Belgium, Denmark, the Netherlands, Austria, Finland, Ireland, Portugal, Sweden, Spain, Italy, France, Germany etc.
1.Generally, you need to waite 10~20 days
For Russia:
We ship by J-NET/ Epacket.
Product Description:
Item Name
Q300G4

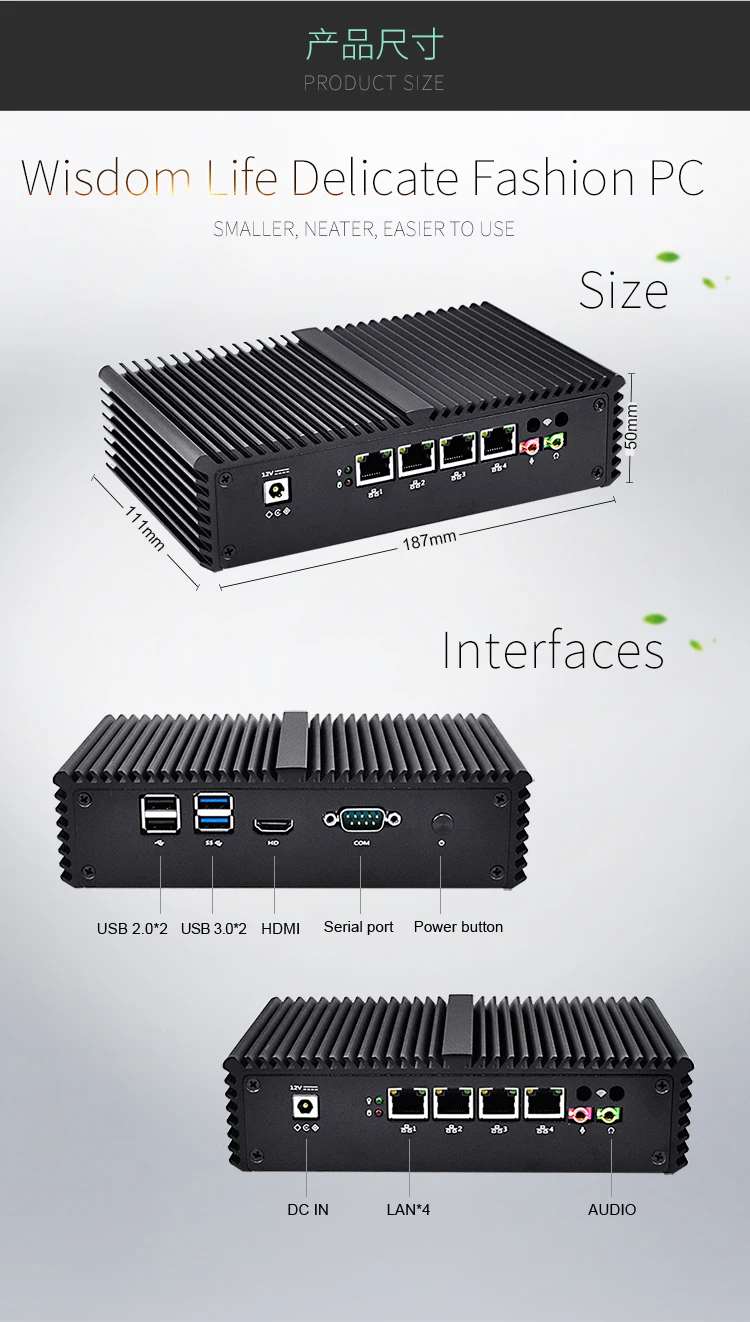

Dimension
187*111*50mm(L*H*W)
Power Consumption
TDP 15w
Processor
Q350G4Y: Intel Core i5-4300Y Processor ,dual core
3M Cache, 1.6 GHz,up to 2.3 GHz
Q335G4 : Intel Core i3-5005U Processor,dual core
3M Cache, 2GHz
Memory( RAM)
1* DDR3L 1333/1600 MHz,1.35V DIMM slot

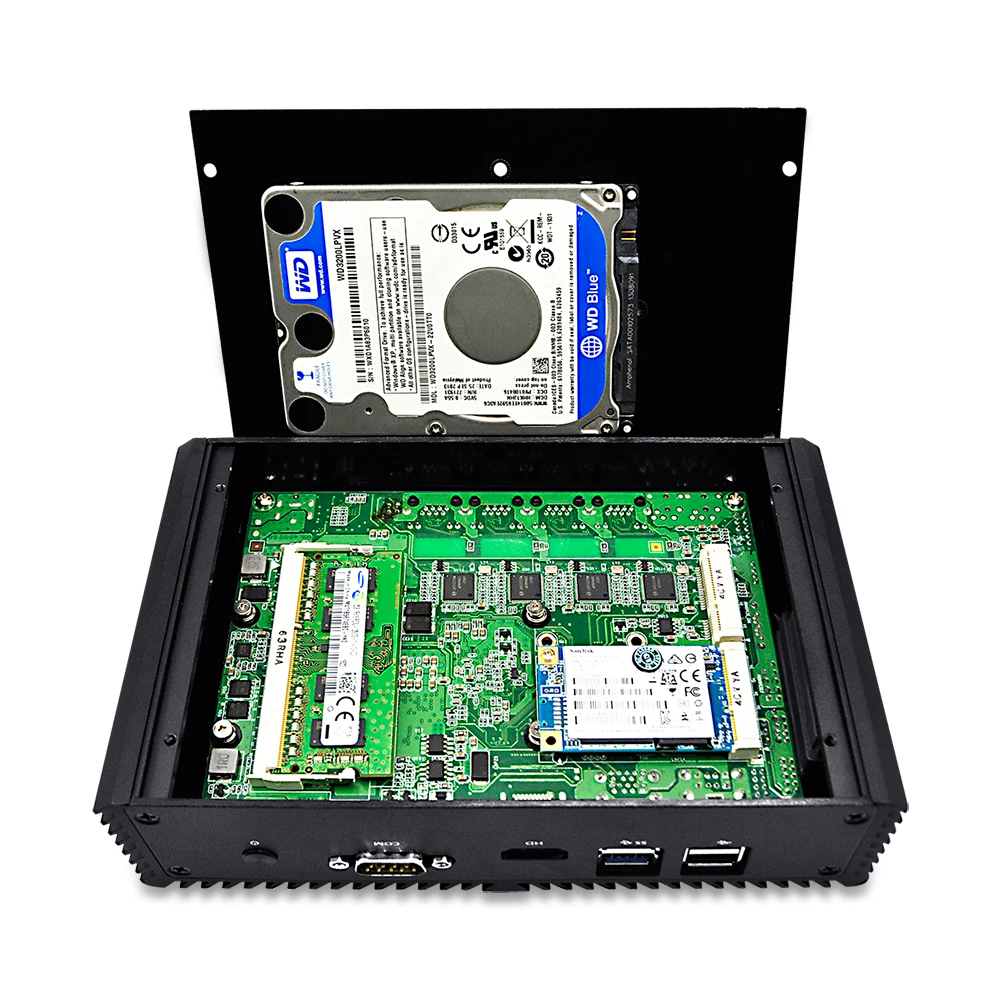

Hard Disk(Msata SSD)
32G/64G/128G/256G
Onboard VGA
Q350G4Y: Intel HD Graphics 4200
Q335G4: Intel HD Graphics 5500
Onboard LAN
4* Intel I211AT - 10/100/1000 Controller
WIFI
Atheros AR9565(if not choose wifi,no pigtails)
Audio Solution
Realtek ALC662 6-Channel HD Audio

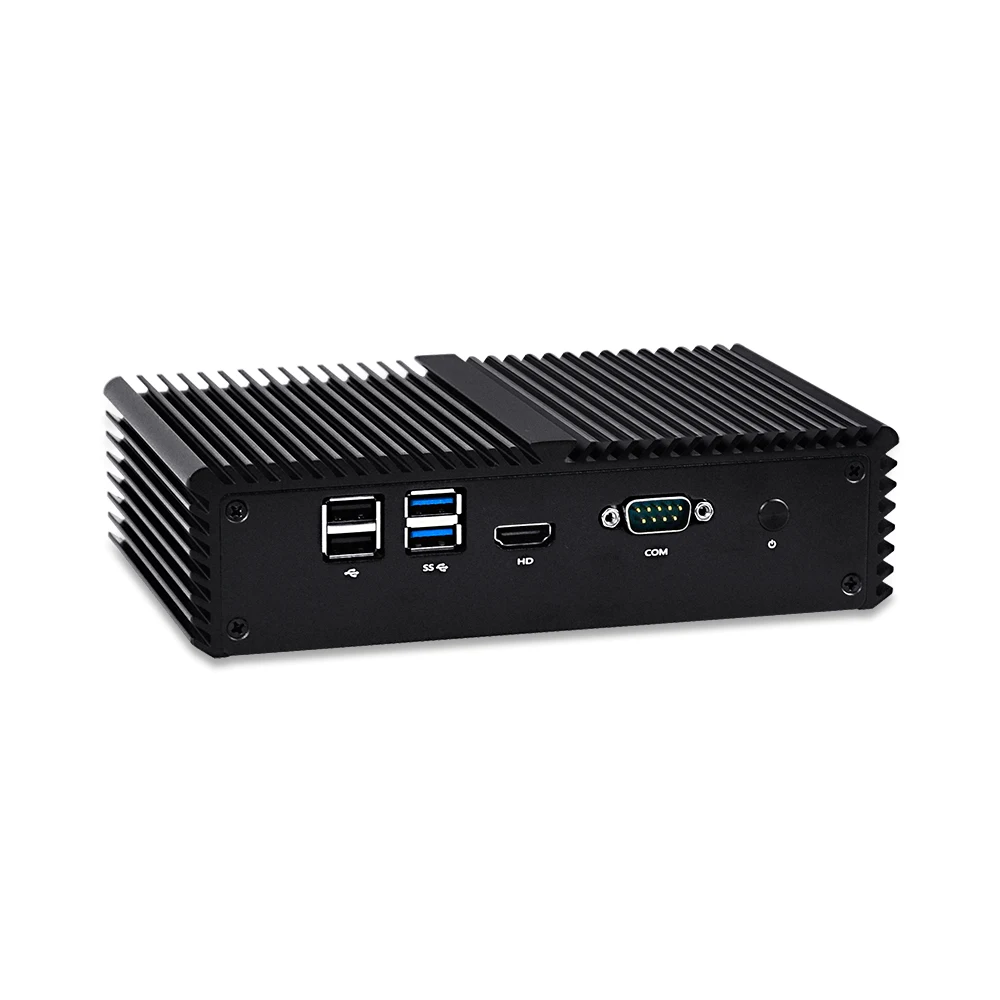

Front-Panel Connectors
power on/off button
HDD LED, Power LEDs
2 *USB 2.0 Ports
2 * USB 3.0 ports
COM port
HD Video port

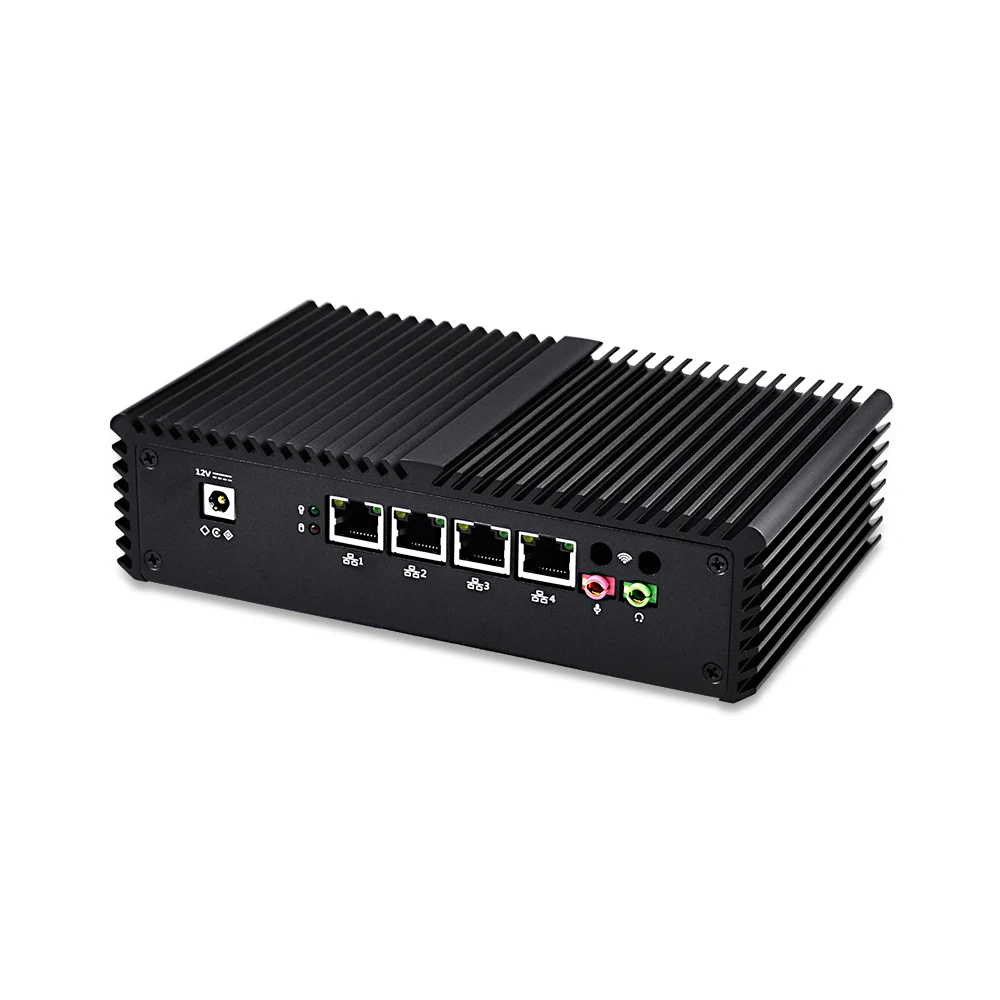

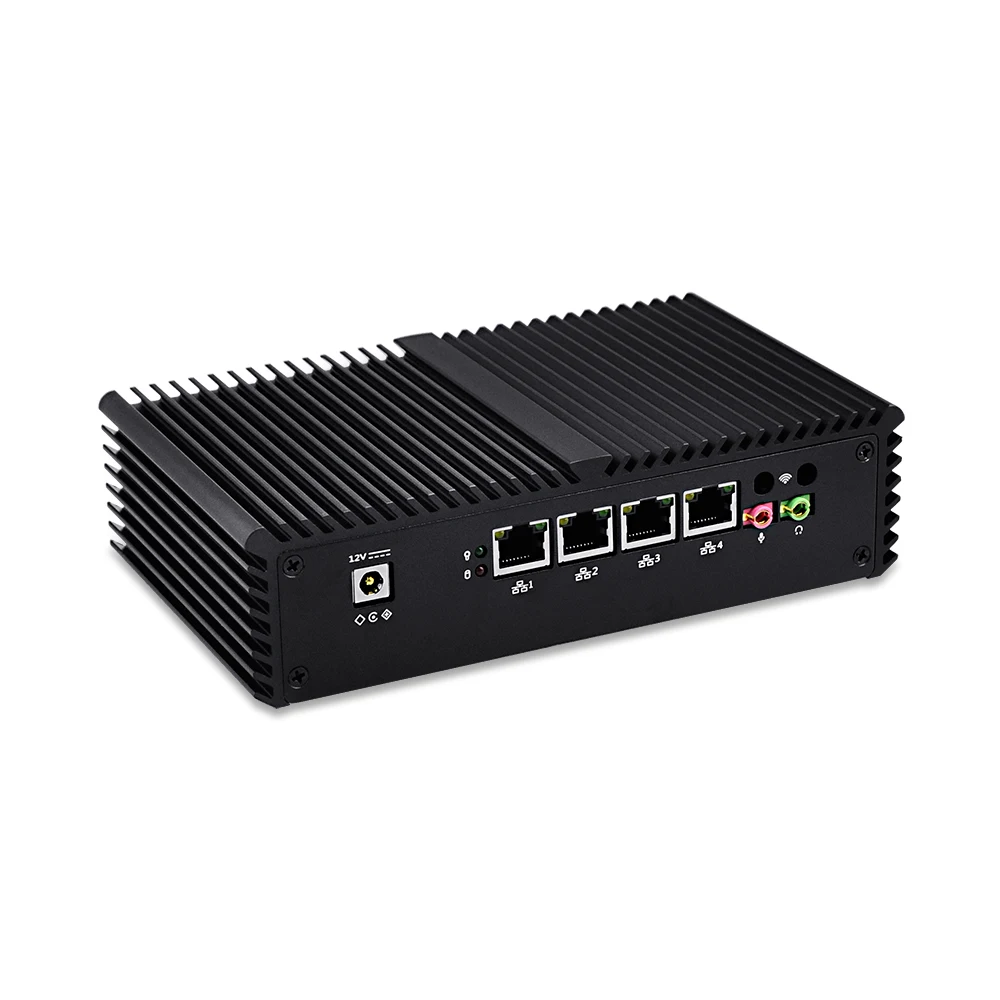

Rear-Panel Connectors
12V DC input,110V-220V output
4 * Intel RJ-45 Ports
1 x Speak Out Connector
Operating System
Preinstall pfsense,available Ubuntu,unactivated win8/10 etc.
Condition
Operating temp. :0℃-50℃ Non-operating temprature: -20℃-80℃ Humidity: 10%-90%
Pls Attention :
Pfsense:
pfsense (PS: Username: admin Password: pfsense)you also can install OS and software package by yourself. F11 key boot from USB Drive. Delete key enter into BIOS.
We can provide Windows drivers download link and motherboard user manual download link.
LAN Ports:
The 4 ports are labeled WAN, LAN, OPT1 and OPT2. when you are using pfsense, Actually the ports should be 1, 3, 4, 2. If you need only WAN and LAN, pls the first port for WAN and the last port for LAN.
RAM:
please choose DDR3L-1333/1600 GHz 1.35V Non-ECC SO-DIMM RAM.
3G/4G module:
There is a mini PCI-e slot for wifi or 3G/4G module but it supports wifi by default, wanna install 3G/ 4G module, please leave a message.We will make some settings in advance. By the way, we don't supply SIM card and 3G/4G module.
BIOS Settings :
Pls press " Delete" into BIOS.
CE Certificate :
FAQ:
Q1: About the system.
A1: It will come with pfsense.we can provide inactive Windows, Linux, VyOS, Linux iptables,Ubuntu ect. Would like other OS, give me an attached message. You also can install OS and software package by yourself. F11 key boot from USB Drive. Delete key enter into BIOS.
Q2. Could you print our company logo on the product?
A2. Yes.
Q3. Could you produce customized package box for us?
A3. Yes, the MOQ. for that is 500pcs. Extra cost will be charged if quantity less than that.
Q4. How about the import tax?
A4. For DHL,we are not responsible for your import fees (duty and tax, VAT and others)
We are not responsible for the delays due to the Customs clearance in your country.
Q5. Does it support 3G/4G?
A5. Yes, there is a mini PCI-e slot for wifi or 3G/4G module but it supports wifi by default, if you want to install a 3G/ 4G module, please leave a message. By the way, we don't supply any SIM card and 3G/4G module.
