Qotom Mini PC Q300G4 Celeron i3 i5 i7 with 4 Gigabit NIC and Core Support AES-NI Router Firewall Fanless Small Computer PC Box
 |
| Qotom Mini PC Q300G4 Celeron i3 i5 i7 with 4 Gigabit NIC and Core Support AES-NI Router Firewall Fanless Small Computer PC Box |
You are looking for "Qotom Mini PC Q300G4 Celeron i3 i5 i7 with 4 Gigabit NIC and Core Support AES-NI Router Firewall Fanless Small Computer PC Box" , this product is ready to be purchased. don't forget to bookmark this site, so you can come back here anytime. Get special discount by shopping on aliexpress site, because new buyers will get a decent discount coupon. To buy this product, please click the buy link bellow.
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -15% |
| Product id | 32799580496 |
| Vendor | qotom Official Store |
| Category | Computer & Office - Mini PC |
Description :
Product Description
(Mini PC Q305G4 / Q330G4 / Q350G4 / Q370G4 have same aluminium metal shell and ports, except CPU and Graphics.)
| Onboard CPU | Q305G4: Intel Broadwell Celeron 3205U Dual Core, 2M Cache, 1.5GHz. Intel® HD Graphics. Don't support AES-NI. |
| Q330G4: Intel Haswell Core i3-4005U Dual Core, 3M Cache, 1.7GHz. Intel® HD Graphics 4400. Support AES-NI. | |
| Q350G4: Intel Haswell Core i5-4200U Dual Core, 3M Cache, 1.6GHz, up to 2.6GHz. Intel® HD Graphics 4400. Support AES-NI. | |
| Q370G4: Intel Haswell Core i7-4500U Dual Core, 4M Cache, 1.8GHz, up to 3.0GHz. Intel® HD Graphics 4400. Support AES-NI. | |
| OS | Support Windows 7, Windows 8, Windows 10, Linux, Pfsense, etc. Pre-install Unactivated Windows 7 in English by default. |
| Memory | 1 x DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz) |
| Storage | 1 x 2.5-inch HDD/SSD 1 x Mini-PCIe for mSATA SSD |
| LAN Chipset | 4 x Intel I211-AT Gigabit LAN |
| Processor Graphics | Chipset: By CPU |
| CPU TDP: 15W | |
| Audio: Realtek ALC662 HD Audio | |
| Security | AES-NI: Yes (Except Q305G4) |
| Watch Dog: Yes | |
| Kensington Lock: Support | |
| Expansion | Mini-PCIe: 1 x Mini-PCIe for Option, 1 x Full-length for 3G Half-length for Wi-Fi Module by Default |
| mSATA: 1 x Full Size Mini-PCIe for SSD | |
| GPIO: 1 x 2.0 Pitch Header | |
| Automatically Boot Jumper: 1 | |
| SIM Card Slot: 1 | |
| DC-in: Header (Optional) | |
| DC Jack: 5.5mm, 2.5mm | |
| Power Adapter: 12V5A | |
| Environmental | Operating Temp: 0°C~50°C |
| Non-Operating Temp: -20°C~80°C | |
| Humidity: 10%~90% | |
| Mechanical | Material: Aluminum |
| Cooling Mode: Fanless Design | |
| Mounting: VESA Mounting Bracket |

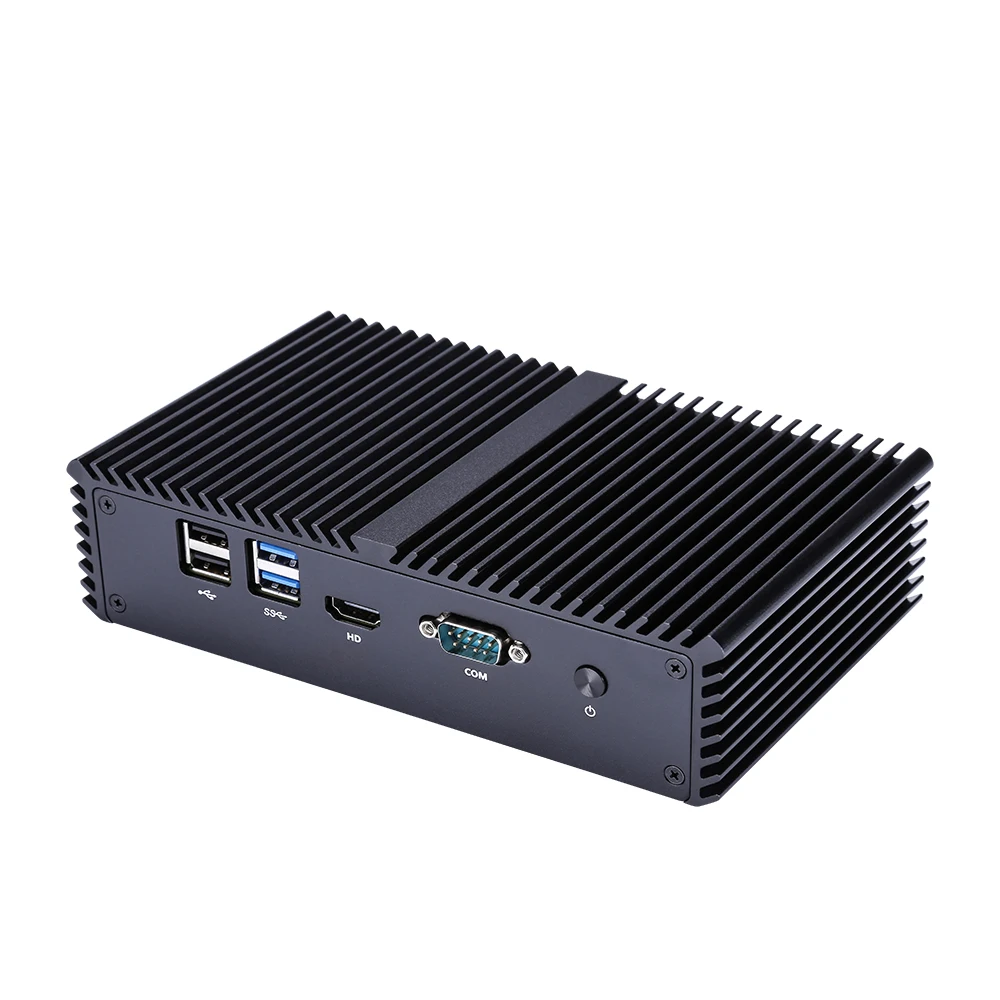

Interfaces Description
Dimension Description

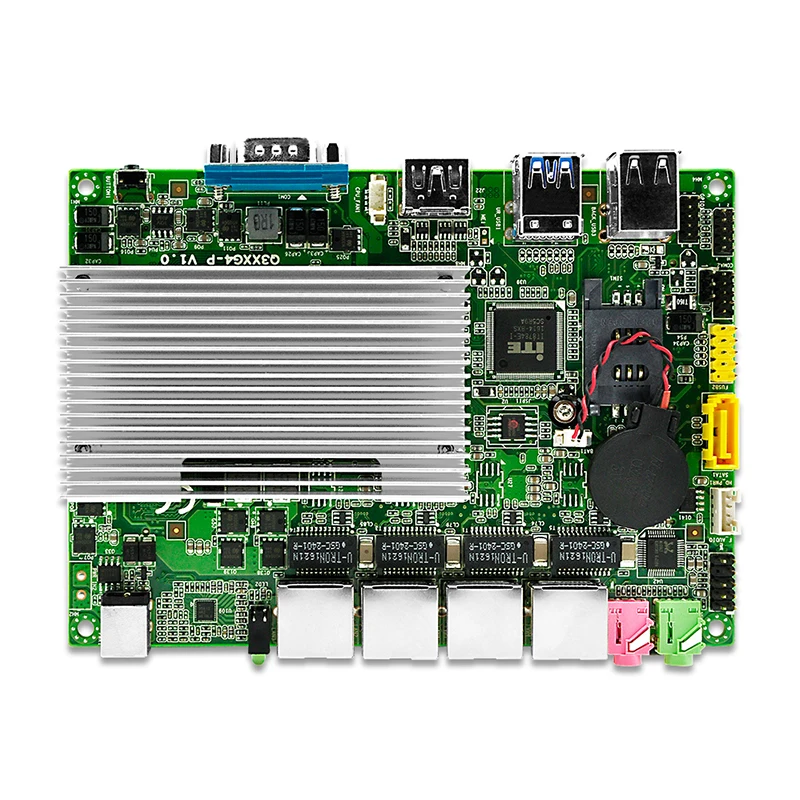

Motherboard Interfaces Description
| Front View | |
| 1 | 12V DC in Connector |
| 2 | HDD LED |
| 3 | Power LED |
| 4 | LAN Connector x 4 |
| 5 | MIC: Connect to outside microphone |
| 6 | Line out: Connect to outside audio device |
| 7 | USB 2.0 Ports x 2 |
| 8 | USB 3.0 Ports x 2 |
| 9 | HDMI Connector |
| 10 | Serial Port |
| 11 | Power Button |
| 12 | Front Panel Audio Header |
| 13 | SATA Power Connector |
| 14 | SATA Port |
| 15 | Front Panel USB 2.0 Header |
| 16 | Serial Port Expansion Header (COM2) |
| 17 | Automatically Boot Jumper |
| 18 | GPIO Header |
| 19 | Front Panel Header |
| 20 | SIM Card Socket |
| 21 | CPU Fan Header |
| 22 | Processor (Support HASWELL and BROADWELL ) |
| 23 | Battery Connector |
| 24 | DC in Header (Optional) |

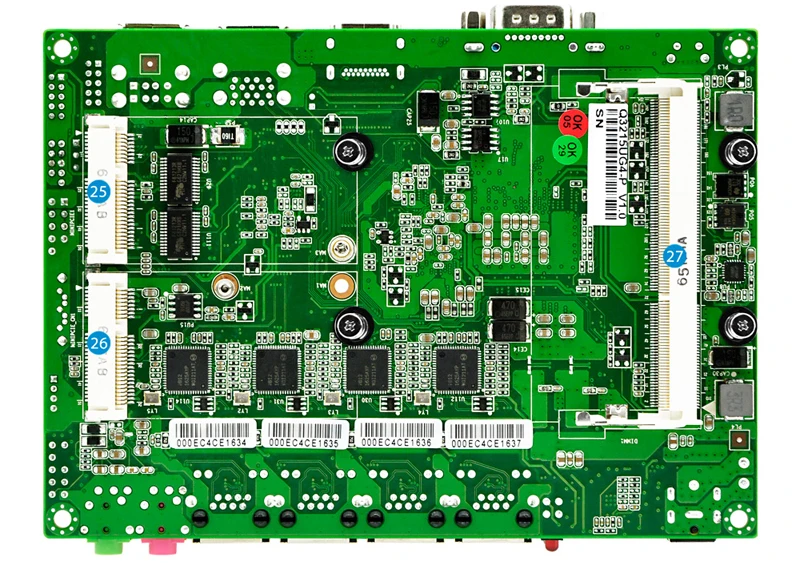

| Rear View | |
| 25 | Mini PCI Express Connector for MSATA SSD |
| 26 | Mini PCI Express Connector for WIFI, Bluetooth, or 3G/4G Module |
| 27 | DDR3L SO-DIMM Socket |
Operating System
1) If the product is with RAM and SSD, it comes with pre-install unactivated Windows 7 in English for test, and we DO NOT provide any Windows license. You also can install OS and software package by yourself. Press F11 key boot from USB Drive, press Delete key enter into BIOS.
2) We can provide Windows drivers download link.
3) This pfSense appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security.
Pls Note:
1. This link is only without WiFi, if you need it, pls click on Core Q300G4-S05 WiFi.
2. WiFi is incompatible with pfSense (only support AP-mode), please reinstall other OS if necessary.
3. If there is NO RAM, please use DDR3L-1333/1600 GHz 1.35V Non-ECC SO-DIMM RAM. Q300G4-S05 DO NOT support DDR3 1.5V RAM.
BIOS Feature
Pls set in BIOS by yourself (Press Delete key).
WiFi & 3G / 4G Module
1. Full-length Mini PCI-e slot (Part ①) only supports mSATA SSD.
2. Half-length Mini PCI-e slot (Part ②) is only for WiFi (/Bluetooth).
3. Full-length Mini PCI-e slot (Part ③) is only for 3G/4G module.
4. SO-DIMM slot (Part ④) is only for DDR3L RAM.
Pls Note:
1. Mini PCI-e cann't be supported WiFi and 3G/4G module as the same time in this computer.
It only supports WiFi by default (Half-length Mini PCI-e). If you want to choose 3G/4G function, pls leave a message.
2. We don't provide SIM card and 3G/4G module.

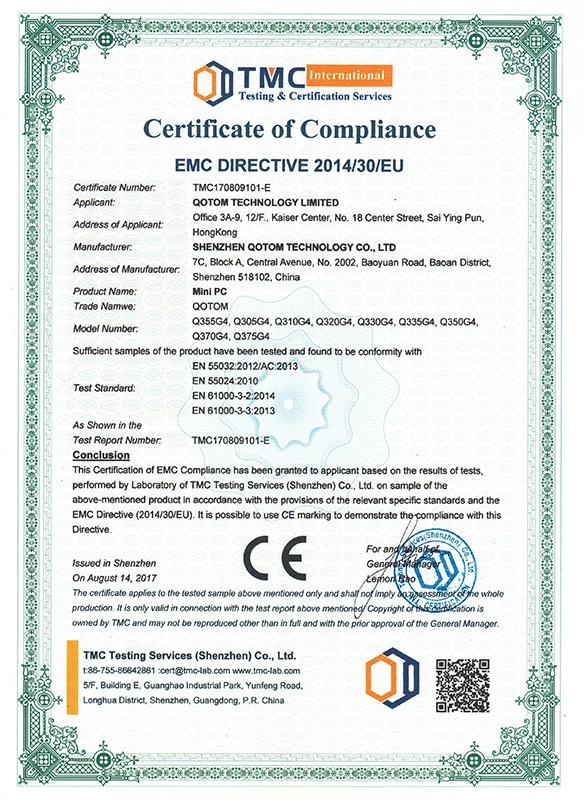

CE Certificate
