Qotom-Q400P Mini PC Celeron/ Core i3/ i5 Dual Core Fanless Computer Support Win Linux Mini Server with 2 Ethernet LAN
 |
| Qotom-Q400P Mini PC Celeron/ Core i3/ i5 Dual Core Fanless Computer Support Win Linux Mini Server with 2 Ethernet LAN |
You are looking for "Qotom-Q400P Mini PC Celeron/ Core i3/ i5 Dual Core Fanless Computer Support Win Linux Mini Server with 2 Ethernet LAN" , this product is ready to be purchased. don't forget to bookmark this site, so you can come back here anytime. Get special discount by shopping on aliexpress site, because new buyers will get a decent discount coupon. To buy this product, please click the buy link bellow.
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -5% |
| Product id | 32845479178 |
| Vendor | qotom Official Store |
| Category | Computer & Office - Mini PC |
Description :
Product Description
(Mini PC Q410P / 430P / Q450P have same aluminium metal shell and ports, except CPU, Graphics and Q410P doesn't support AES-NI).
| Processor System |
| Expansion | ||||
| CPU | Q410P-S08: Intel Broadwell Celeron 3215U Dual Core, 2M Cache, 1.7GHz (Don't support AES-NI).
Q430P-S08：Intel Haswell Core i3-4005U Dual Core, 3M Cache, 1.7GHz (Support AES-NI).
Q450P-S08：Intel Haswell Core i5-4200U Dual Core, 3M Cache, 1.6GHz, up to 2.6GHz (Support AES-NI). | Graphics | Q410P-S08：Intel® HD Graphics Q430P-S08：Intel® HD Graphics 4400 Q450P-S08：Intel® HD Graphics 4400 | |||
| Mini-PCIe | 2, Full-length for 3G, Half-length for Wi-Fi Module | |||||
| OS | Support Windows 7, Windows 8, Windows 10, Linux, Ubuntu, Pfsense | mSATA | 1 x Full Size Mini-PCIe for SSD | |||
| Memory | 1 x DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz) | GPIO | 1 x 2.0 Pitch Header | |||
| Storage | 1 x 2.5-inch HDD/SSD 1 x Mini-PCIe for mSATA SSD | DC-in | Header | |||
| LAN Chipset | 2 x Realtek RTL8111E Gigabit LAN | DC Jack | 5.5mm, 2.5mm | |||
| Audio | Realtek ALC662 HD Audio | Power Adapter | Q410P: 12V3A Q430P / Q450P: 12V5A | |||
| Chipset | By CPU | Automatically Boot Jumper | 1 | |||
| CPU TDP | 15W | |||||
| AES-NI | Yes (Except Q410P) | SIM Card Slot | 1 | |||
| Watch Dog | Yes | VGA / RS-285 | No | |||
|
|
| |||||
| Environmental | Mechanical | |||||
| Operating Temp | 0°C~50°C | Material | Aluminum | |||
| Non-Operating Temp | -20°C~80°C | Cooling Mode | Fanless Design | |||
| Humidity | 10%~90% | Mounting | VESA Mounting Bracket | |||
Interfaces Description
Dimension Description
Detailed Description
Operating System
1) If the product is with RAM and SSD, it comes with pre-install unactivated Windows 7 in English for test, and we DO NOT provide any Windows license. You also can install OS and software package by yourself. Press F11 key boot from USB Drive, press Delete key enter into BIOS.
2) We can provide Windows drivers download link.
Pls Note:
1. This link is only with WiFi, if you don't need it, pls click on Q400P NO WiFi.
2. This link is with 4 COM ports, if you don't need it, pls click on Q400S-S08 WiFi.
3. If there is NO RAM, please use DDR3L-1333/1600 GHz 1.35V Non-ECC SO-DIMM RAM. They DO NOT support DDR3 1.5V RAM.
4. This PC is also incompatible with some 1.35V RAM model likes Crucial etc. Seller is irresponsible and makes no compensation for buyer's own RAM.
BIOS Feature
Pls set in BIOS by yourself (press Delete key).
WiFi & 3G / 4G Module

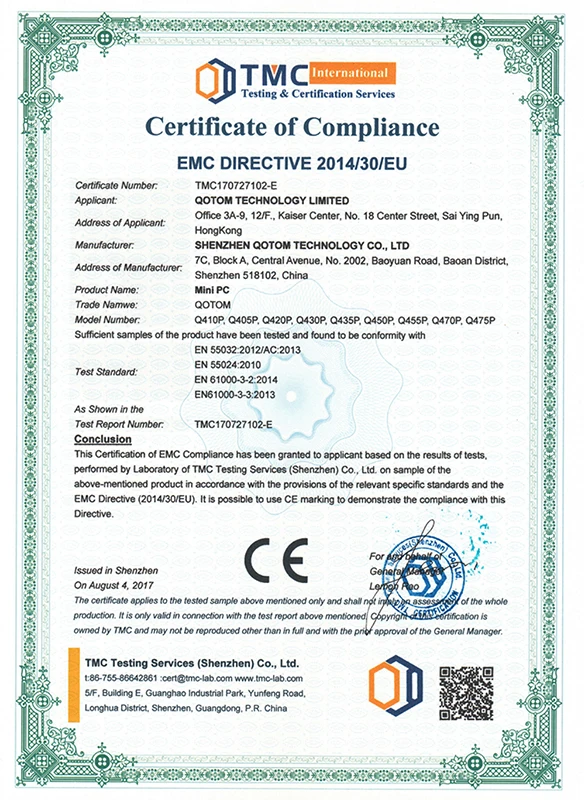

CE Certificate
