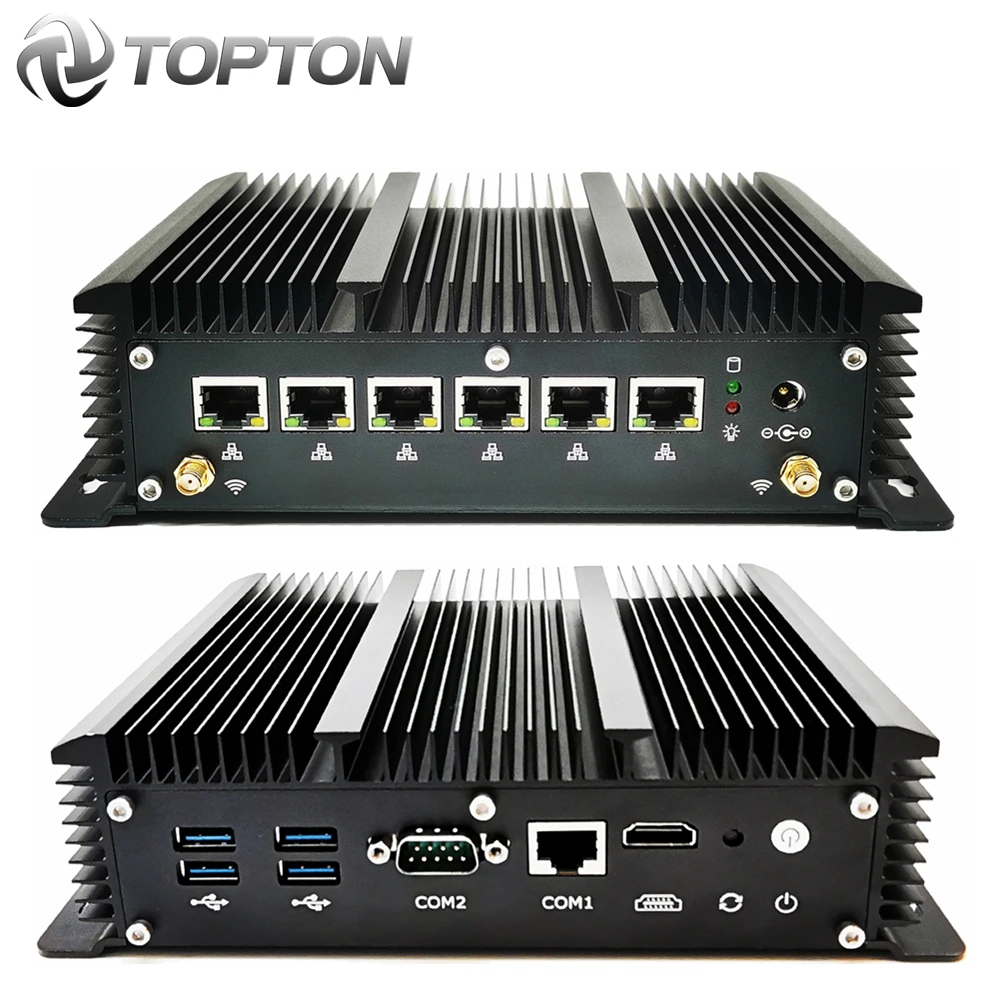

Fanless 6 Lans Industrial Mini PC Intel Core i5 7267U i3 7167U 3865U Firewall PC Pfsense Router 4*USB3.0 2*RS232 HDMI 4G/3G WiFi
Fanless 6 Lans Industrial Mini PC Intel Core i5 7267U i3 7167U 3865U Firewall PC Pfsense Router 4*USB3.0 2*RS232 HDMI 4G/3G WiFi |
You are looking for "Fanless 6 Lans Industrial Mini PC Intel Core i5 7267U i3 7167U 3865U Firewall PC Pfsense Router 4*USB3.0 2*RS232 HDMI 4G/3G WiFi" , this product is ready to be purchased. don't forget to bookmark this site, so you can come back here anytime. Get special discount by shopping on aliexpress site, because new buyers will get a decent discount coupon. To buy this product, please click the buy link bellow.
Name | Details |
---|---|
Buy now just | |
Discount | -29% |
Product id | 4000483849437 |
Vendor | Topton Computer Store |
Category | Computer & Office - Mini PC |
Description :
Processor parameter for referance:
1. 4th Gen Haswell 22nm Intel Celeron 2957U(2955U) 2 cores 2 threads 1.4GHz 2MB cache TDP 15W Intel® HD Graphics. (DO NOT SUPPORT AES-NI)
2. 7th Gen Kaby Lake 14nm Intel Celeron 3865U 2 cores 2 threads 1.8GHz 2MB cache TDP 15W Intel® HD Graphics 610.(SUPPORT AES-NI)
3. 7th Gen Kaby Lake 14nm Intel Core i3 7167U 2 cores 4 threads 2.8GHz 3MB cache TDP 28W Intel® Iris® Plus Graphics 650. (SUPPORT AES-NI)
4. 7th Gen Kaby Lake 14nm Intel Core i5 7267U 2 cores 4 threads 3.1GHz up to 3.5GHz 4MB cache TDP 28W Intel® Iris® Graphics 650.(SUPPORT AES-NI)
All bundles on sale DO NOT include WiFi(antennas), 3G/4G module, WiFi(antennas) cost US $7, 3G module cost US $50, 4G module cost US $70. If you need, pay at this link.
Barebone system no ram no storage, please use DDR3L-1600 1.35V Non-ECC SO-DIMM Ram. Do not support DDR3 1.5V Ram.
DO NOT buy "no ram no storage" bundle if you are not Computer Expert, PC had best to use Samsung, SKhynix, Micron etc original brand accessories, We DO NOT compensate for buyer's own ram and hard drive.
- Fanless system without cooling fan, no any noise, thicker and longer heat-sink fins for working as long as 7x24 hours durably.
- 6*Intel i201/i211 Gigabit RJ45 LANs and 2*RS232 COM ports, support Windows, Linux and pfSense OS.
- 1*mSATA SSD+1*2.5'' SSD/HDD installation supported.
- One embedded SIM card slot onboard, 3G/4G/WiFi optional.
- Applied in Firewall, Network Server, Network Security, VPN Router etc.
- Full Aluminum Alloy Black color shell, Exquisite production craft on outside design with high quality, slim design 209*150*57MM.
- Low consumption save much energy and eco-friendly.
- Support Watchdog, AWAL, RTC, WOL, PXE, Reset functions.
Buy with confidence! 3 Years long warranty for fanless system!
Black Case in stock always:
Silver Case(OEM for quantity order):
Basic Information:
CPU
Onboard Intel 4th/5th/6th/7th/8th Gen Mobile CPU for optional
TDP
15W/28W
Motherboard
150 x 150mm customized size
BOIS
American Megatrends Inc.5.12
Chipset
Intel Sunrise Point-LP
Memory
1 x SO-DIMM DDR3L Slot
Support 2GB/4GB/8GB
DDR3L-1600, DDR3L-1333, LPDDR3-1600, LPDDR3-1333
OS
Windows® 7/8/10, Pfsense, WES 7/10, LINUX
PXE
YES
Audio
Intel Kaby Lake HDMI @ Intel Sunrise Point-LP PCH - High Definition Audio Controller
Network
Intel(R) i210/i211 Gigabit Network Connection
10/100Mbps/1000Mbps BaseT LAN
Video
Intel® HD/Iris Graphics
Input/output port
Switch
1 x Power On/Off Switch
Power
1 x 12V DC In
LED
1 x Power LED, 1 x HDD LED
USB
4 x USB3.0
Display
1 x HDMI
LAN
6 x RJ45 Giga LAN
COM
1 x DB9 RS232 COM, 1 x RJ45 RS232 COM
SIM
1 x embedded SIM card slot onboard
Audio
1 x MIC, 1 x SPK
Others
1 x Reset button
Storage
MSATA
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
SATA
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Wi-Fi
Module
1 x mini PCIE-full/mini PCIE-half port for 3G/4G/Wi-Fi module(USB WIFI protocol)
Antenna
2 x inner RF cables and 2 x external antennas
Power and Working Environment
Input
DC100-240V AC/50-60Hz
Output
DC +12V~+19V, recommend 12V/5A
Operating Temperature
-20/+60 Centigrade
Storage Temperature
-30/+70 Centigrade
Relative Humidity
10%~90%@30 Centigrade(non-condensing)
Product Dimension & Details
Size
209*150*57mm
Weight
Net 1.35kg, Gross 2.5kg
Shell
Black/Silver color aluminum alloy(any customized color for bulk order)
Mounting
4 mounting holes on case
Cooling Mode
Fanless
Functions
Watchdog, AWAL, RTC, WOL

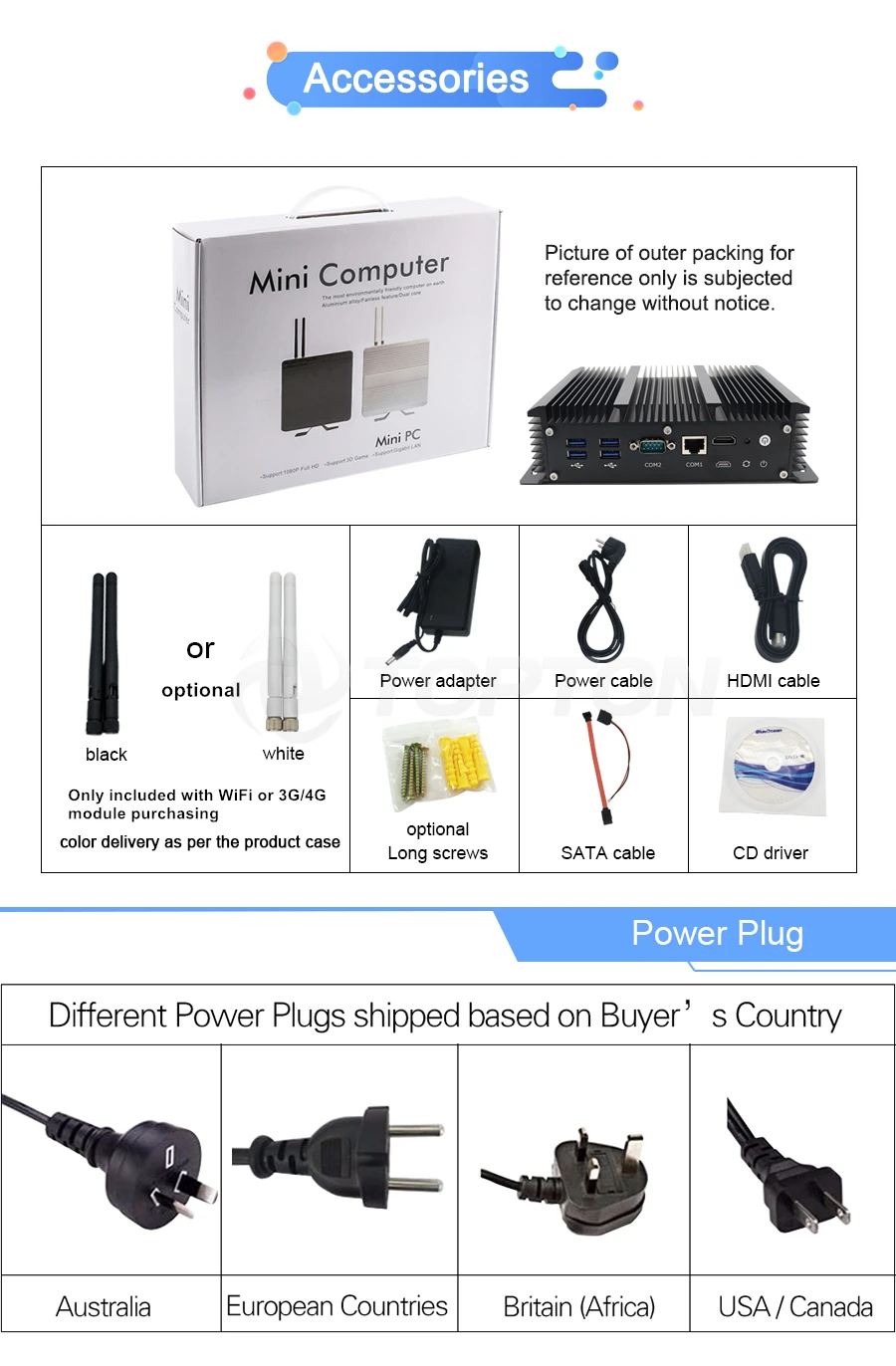

Package Content
Standard
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xHDMI cable
Optional
Wi-Fi antennas, 1xUser Manual, 1xLong Screws Bag
Free Operating System: Default installed Pfsene. Other systems we can install free are like Windows, Linux, Ubuntu etc if you need. Seller is irresponsible and makes no compensation for trial system.
You also can install OS and software package by yourself. F11 key boot from USB Drive. ESC key enter into BIOS.
Accessories as Ram, SSD, HDD, we use famous brand:samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingston, phison etc, What brand we use depends on our test and our stock.
1. WiFi(antennas) add extra 7$, 3G module add extra 50$, 4G module add extra extra 70$.
2. 500GB 2.5'' HDD add extra 50$, 1TB 2.5'' HDD add extra 75$, 2TB 2.5'' HDD add extra 100$.
3. USB Infrared remote (can turn power off but not on, and control media center like kodi) add extra cost US$14.
4. Bluetooth4.0 USB Dongle add extra cost US$5.
5. External USB DVD-ROM add extra cost $18, External USB Bluray DVD-ROM add extra cost $45.
6. USB 2.4GHz Air Keyboard& Mouse, add extra cost $20.
7. Genuine windows license add extra cost 35$.
Upgrading link: https://www.aliexpress.com/item/32738298207.html
(how many dollars to upgrade, pay how many pieces, US$1=1pcs, For example upgrade USB IR remote, pay 14pcs for US$14, remember to leave message noting which one you upgrade for...)
