True dual core desktop mini home theater HPTC silver HTPC with Intel Core I5 3317U have stock
 |
| True dual core desktop mini home theater HPTC silver HTPC with Intel Core I5 3317U have stock |
You are looking for "True dual core desktop mini home theater HPTC silver HTPC with Intel Core I5 3317U have stock" , this product is ready to be purchased. don't forget to bookmark this site, so you can come back here anytime. Get special discount by shopping on aliexpress site, because new buyers will get a decent discount coupon. To buy this product, please click the buy link bellow.
| Name | Details |
|---|---|
| Buy now just | |
| Discount | |
| Product id | 32309314249 |
| Vendor | INCTEL Technology Co.,Limited |
| Category | Computer & Office - Mini PC |
Description :
True dual core desktop mini home theater HPTC silver HTPC with Intel Core I5 3317U have stock
More Configuration Listing,
This model support
1*Msata SSD
256G SSD: add $102 (buy 102pcs)
512G SSD: add $254 (buy 254pcs)
Upgrade link for the upgrade service: http://www.aliexpress.com/store/product/Mini-pc-upgrade/800900_868197980.html
(Upgrade rules, such as upgrade 8pcs, buy 8pcs for it;
buy 10pcs for $10, Upgrade value, 1pc=$1)
HTPC MINI PC Manageability strong, mini pc user can either use all the resources,
the user is relatively large degree of freedom
| Configuration | |
| Model | IN-SI5 |
| CPU | Intel Core I5 3317U 1.7Ghz |
| GPU | Integrated HD4000 graphics core |
| RAM | Max. 8G RAM NB Memory SO-DIMM 204Pin |
| Storage | Support 1*Mini PCIE Msata SSD (SSD Max.512G) |
| Wi-Fi | Wireless-(150Mbps or 300Mbps optional) 1 or 2 Antennas |

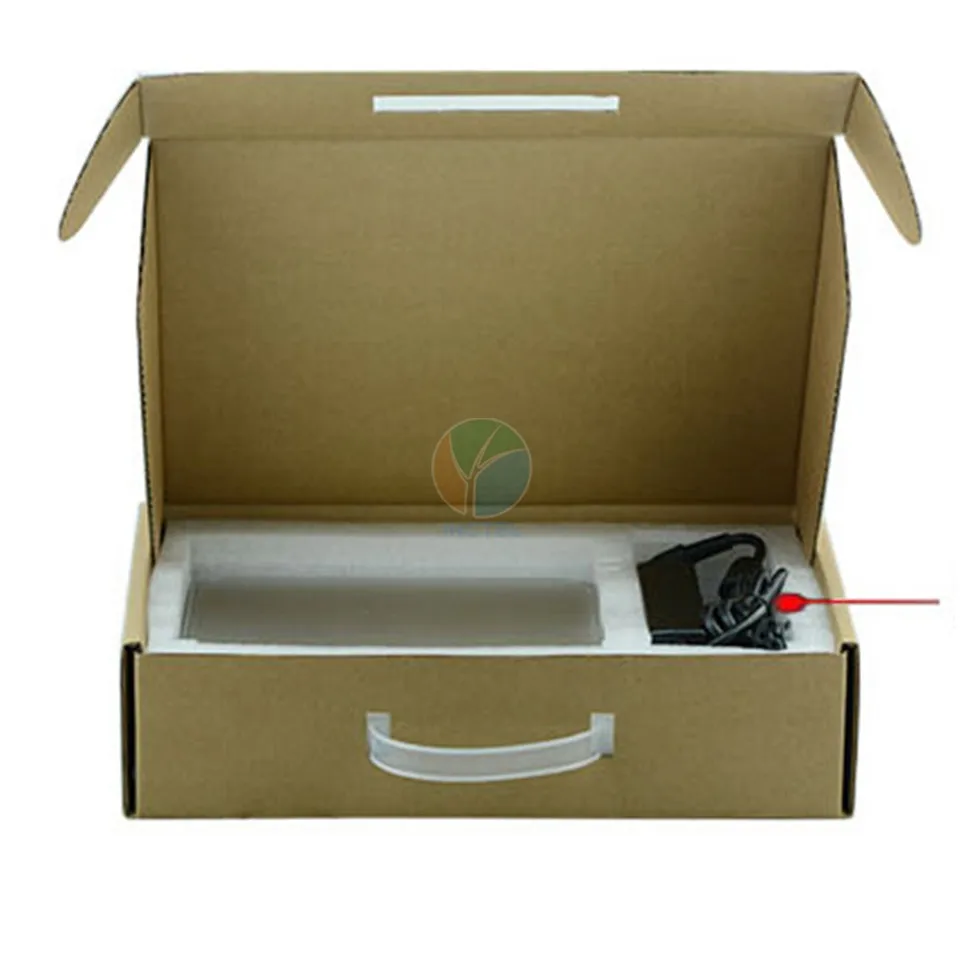

| Package | IPC+Power Supply+Power Cord (USA, European, UK Types for optional) |
Emphasis:

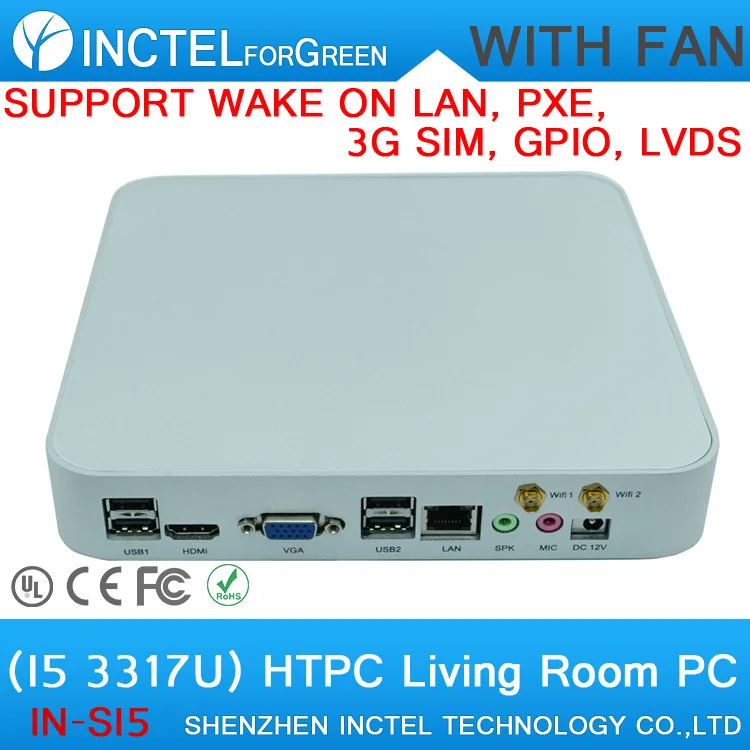

Support Wake on LAN, PXE, 3G SIM, GPIO, LVDS
4*USB2.0, HDMI+VGA+24 Bit LVDS, 1080P HD playback

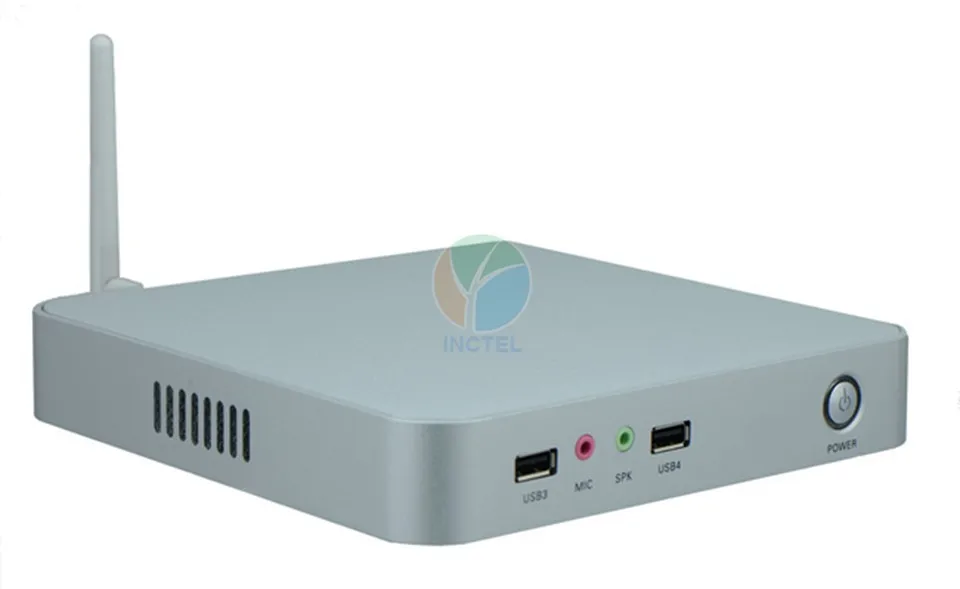

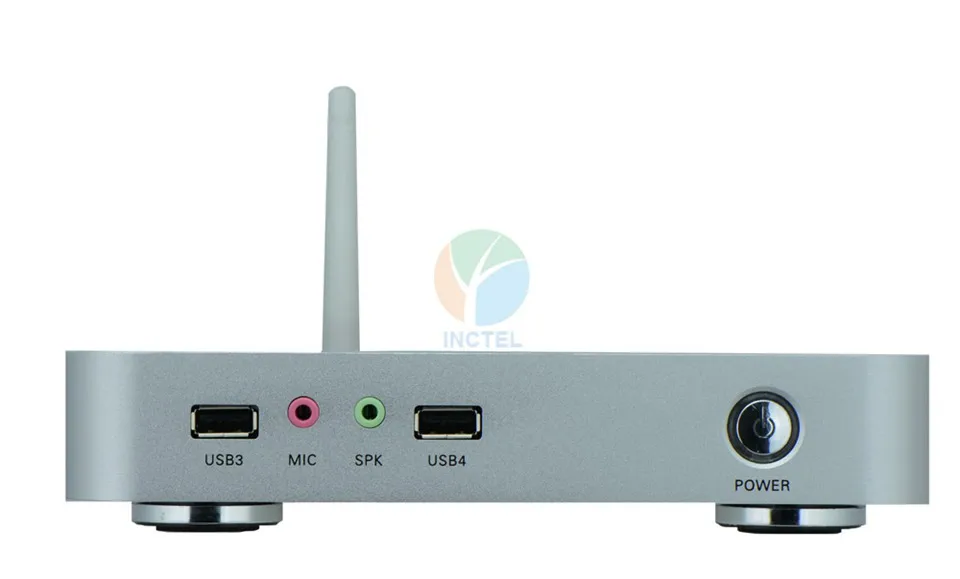

Can expand 2 front extra USB 2.0 (Upgrade fee $4)

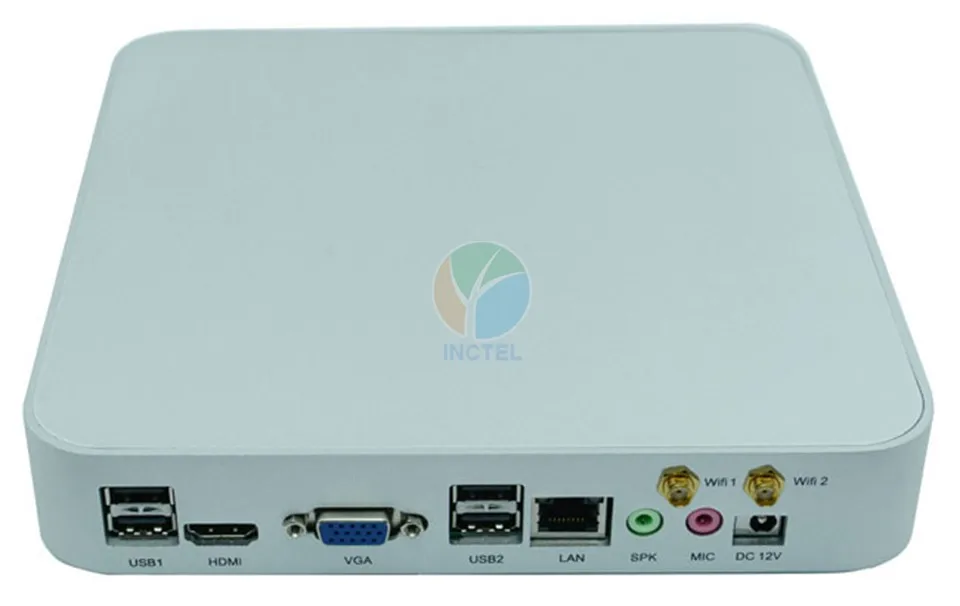

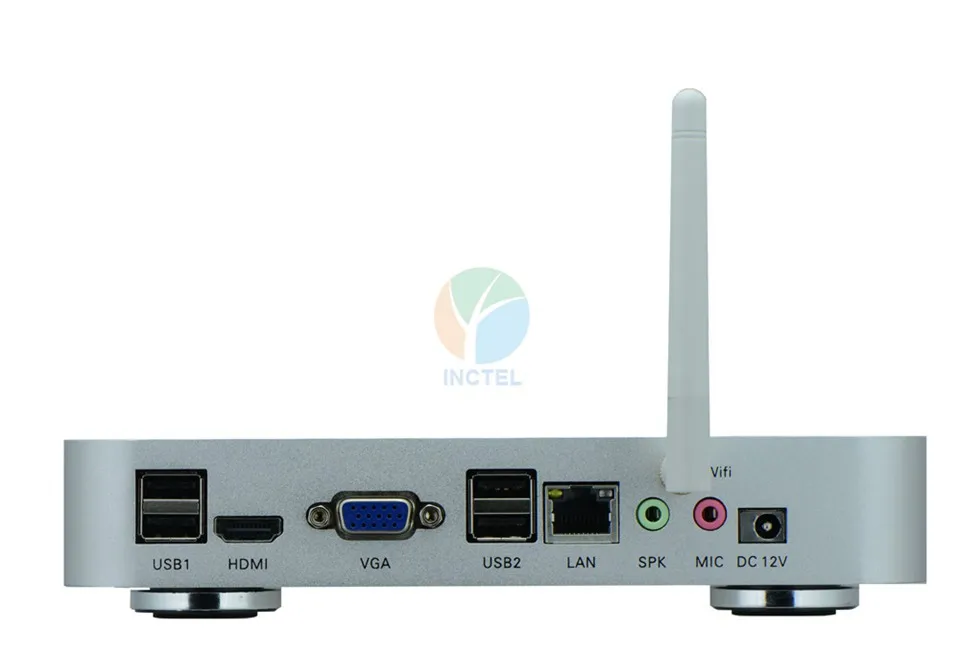

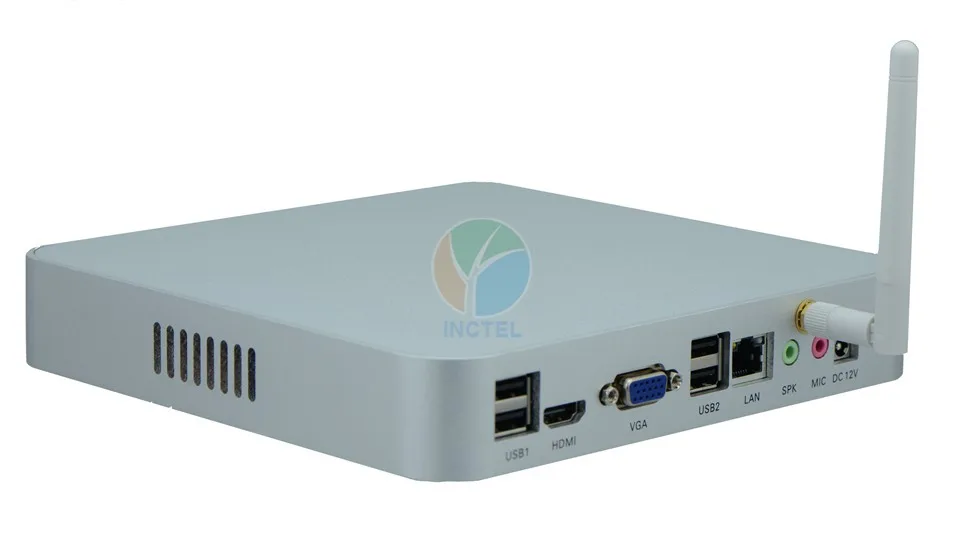

IPC Rear I/O:
4*USB 2.0
HDMI
VGA
LAN
Audio Input & Output
12V DC
Size: 197MM*197MM*33MM
Weight: 2.5KGS
Upgrade Service:
1. WiFi Optional, if need wifi,(150Mbps) only one antenna builtin wireless add extra $8,
(300Mbps) add $10. Choose one from 150M and 300M.
2. USB Bluray DVD add $48, Normal DVD add $28
3. 2.4G Air mini Keyboard and Mouse add $18 (choose one type)
6. More configuration about lower or higher RAM, HDD, SSD Options, please refer to our big directory or contact our pre-sales for guide.
Ref. Photo as belows,
Upgrade link for the upgrade service: http://www.aliexpress.com/store/product/Mini-pc-upgrade/800900_868197980.html
(Upgrade rules, such as upgrade 150M wifi, buy 8pcs for $8, 300M wifi,
buy 10pcs for $10, Upgrade value, 1pc=$1)
Barebone PC Only,
NO RAM,
NO SSD, NO HDD
If customer buy the configuration with RAM, SSD, HDD, We can install as belows,
XP/windows 7/Ubuntu Linux optional
(if not leave message, we will ship at Random.)
Charged WIN.8/8.1 add extra $5, Server 2003 add extra $5
Above is Cracked English Version.
Original Windows, please buy it locally!
For bulk orders/Bid Goverment orders, we can supply original embeded windows. (MOQ:10 Sets,inquiry our pre-sales)

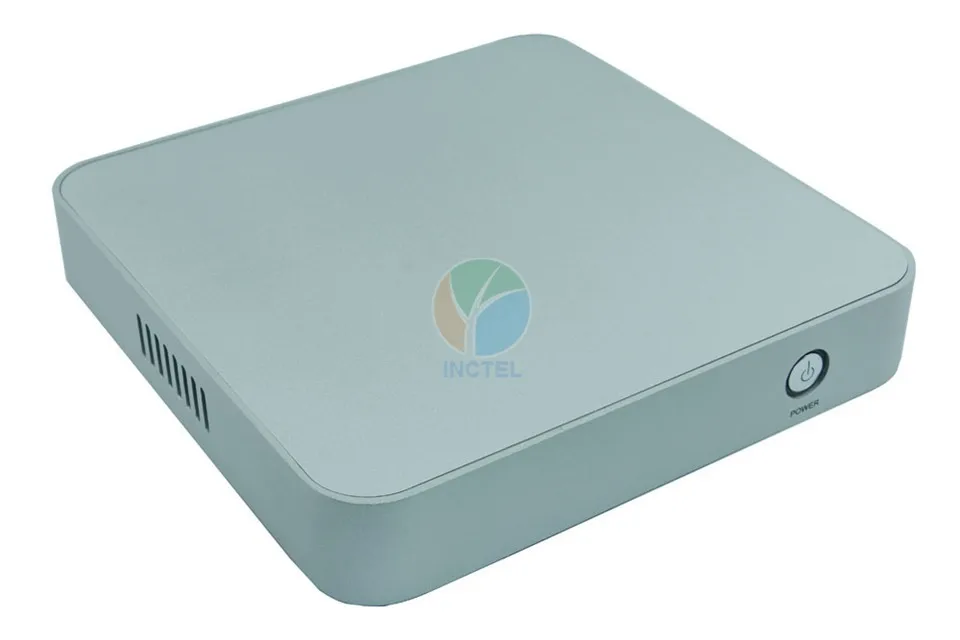

True dual core desktop mini home theater HPTC silver HTPC
Intel I5 3317U processor dual WIFI antenna optional Silver Aluminum Chassis VGA HDMI display can be installed WIN7, WIN8, XP and other systems.
CPU: Intel Core processor I5 3317U 1.7G dual core four threads
Memory: Max. 8G RAM
Storage: MSATA
NIC: 1 * RTL8111E Gigabit Ethernet ports
Chassis:length 197MM * 197MM * 33MM
Power: 12V5A adapter power which is stable 365 days without failure
Motherboard: Green Network Security Industrial Motherboard
Software: You can install Windows XP, WIN7, WIN8 so on.

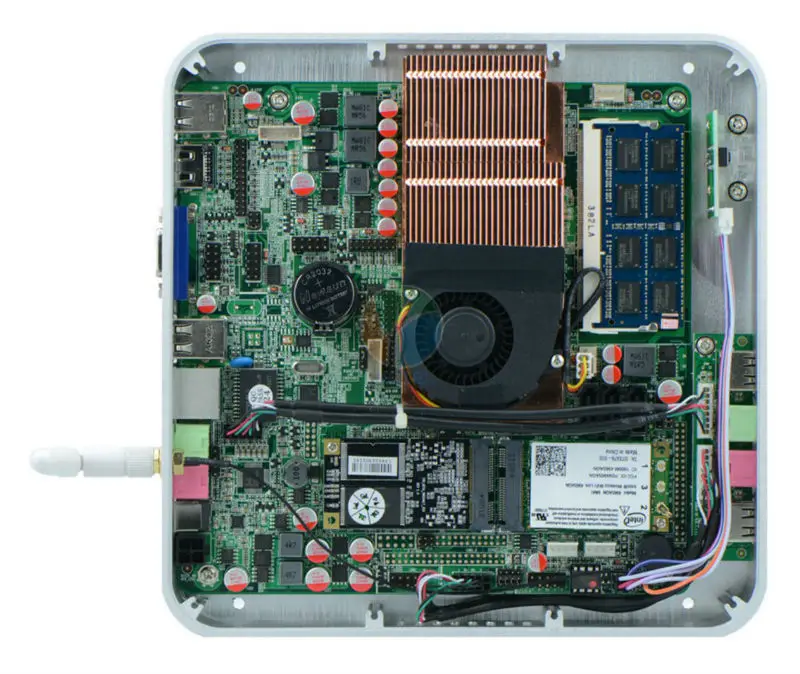

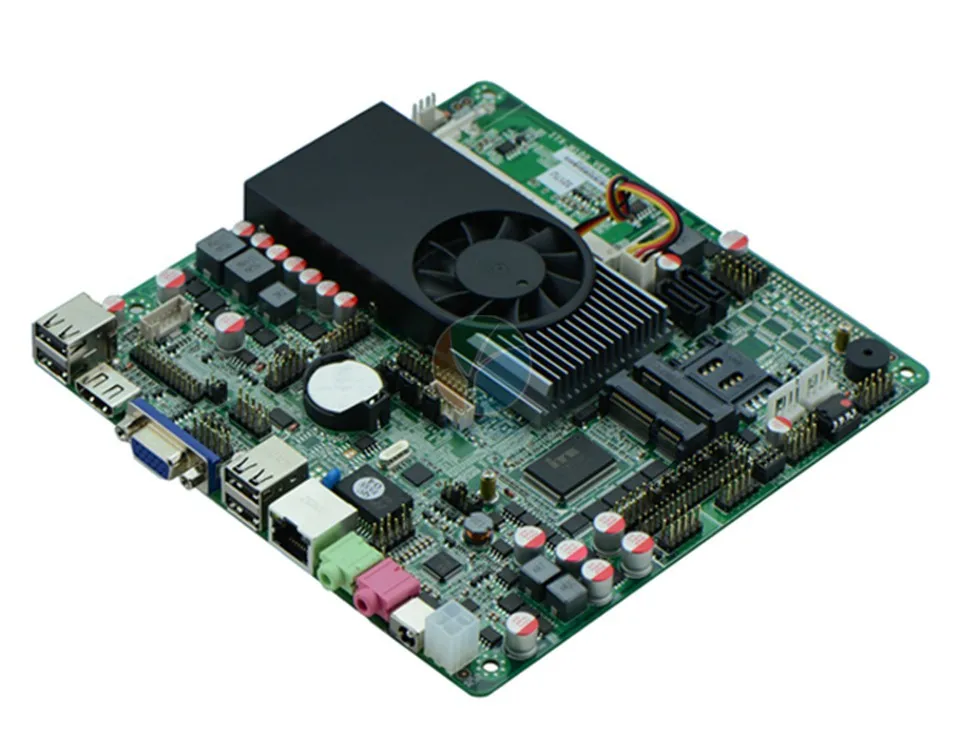

Motherboard:
Superior performance I5 3317u HD Slim HD advertising Industrial Motherboard
I5 3317U integrated DDR3 dual-core processor 6 RS232 interface COM2 and COM3 support RS485 / 422 mode dual 24BIT LVDS thin slim HTPC Motherboard
Intel I5 3317U integrated dual processor with four threads 1.70GHZ Intel NM70 Express chipset supports DDR3 Notebook Memory
Integrated Intel HD4000 Graphics graphics core supports VGA / HDMI / Dual 24BIT LVDS synchronous / asynchronous display output support 1080P HD playback
Integrated 1 * RTL8111E Gigabit Ethernet supports Wake on LAN / PXE function support WIFI / 3G module / SSD Solid State Drive / 8 USB / 6 COM ports
Integrated six-channel Realtek ALC662 HD Audio controller supports MIC / Line-out motherboard power supply DC12V
CPU
Intel I5 3317U integrated dual 1.70GHz processor with four threads TDP of 17W
Chipset
Using Intel NM70 Express Chipset
RAM
1 * SODDRIII 1333/1066 memory slot supports up to 8GB
Display Function
Intel HD4000 Graphics integrated graphics core
Provides 1 VGA 2 HDMI 1 LVDS interface (supports dual channel 24BIT)
Support HDMI1 / VGA with asynchronous
Supports LVDS / VGA with asynchronous
Supports LVDS / HDMI1 with asynchronous
Support HDMI1 / HDMI2 with asynchronous
Expansion Slots
1 * Mini-PCIE slot supports WIFI / 3G module (patch control function interchangeably)
1 * MSATA slot supports transmission speeds of up to 6Gbps MSATA
Network capabilities
1 * RTL8111E Gigabit LAN chip supports Wake on LAN / PXE function
Memory function
3 * SATAII hard disk interface (one 2 * 5PIN pin connector) transmission speeds of up to 3Gbps
Audio features
Onboard ALC662 6-channel HD Audio controller supports MIC / Line-out / PA
(PA recommends using 3Ω2W speaker)
Backplane I / O interface
4 * USB2.0 interface
1 * HDMI interface
1 * VGA interface
1 * RJ-45 network interface
1 * Line out (green)
1 * Mic (red)
1 * 12V DC_JACK input
Built-in I / O interface
1 * LVDS interface supports dual-channel 2 * 15pin 24BIT LCD screen
1 * JHDMI interface 2 * 8Pin
1 * JVGA1 interface DB15 same signal 2 * 5pin
5 * RS232 serial port (which supports RS485 or RS422 COM2 COM3 function, and 9 feet Charged
1 * LPT printer port
4 * USB2.0 interface Mini-PCIE if the USB signal support two USB
1 * PS / 2 mouse and keyboard interface 1 * 6Pin
1 * FP1 front panel function buttons and LEDs Interface 2 * 5pin
1 * AUDIO Front panel audio connector
1 * SIM card connector
2 * PWROUT hard drive power connector
1 * ATX_12V do + 12V input and output power connector
1 * LVDS INVERTER
Fan connector
1 * CPUFAN 4pin 1 * SYSFAN 3pin
GPIO
Support 4 input and output GPIO
BIOS
AMI 32MB Flash ROM
Watchdog
Support for hardware reset function (256, 0 to 255 seconds)
Power type
DC_12V single power input
Working temperature
-10 ~ 60
Storage temperature
-20 ~ 70
Humidity
5% to 95% relative humidity, non-condensing
Size
170mm x 170mm
INCTEL Technology specializes in the production of industrial computer product development, sales and service.
Products involved: Mini PC, Thin Clients, Virtual Box Products, Mini ITX motherboard, 3.5 inch embedded board, NVR industrial motherboard, network firewall motherboard, industrial chassis integrated workstations, network security barebone, industrial computer accessories and other products.
The company of "quality-based, service success" marketing concept, introduced series of products, widely used: self-service banking terminals, supermarkets operating system, network security, video surveillance, digital signage, automotive computers, smart gaming terminals, automated medical devices, digital signage, and many other areas of logistics applications. Products are exported to Europe, America, Middle East, North Africa, Southeast Asia, more than forty countries and regions, has become well-known in the world.
About Power Cord:
We will ship the type of power cord, based on your area.
Best Choise with less money,
why not check out immediately?
FANLESS - 0.00dB Noise Mini PC in the world
We will offer you best service
Do it now !!!
Do you feel INCTEL's enthusiasm and professionalism?
Shipping Term:
Free shipping is only applicable to HK, To other countries, we offer reasonable freight rate or even lower than the paid rate (If you made an order, assuming you accept this):
Nommally we ship via DHL, UPS, FEDEX, and EMS, HK Post, there are some explanation,
Flexible shipping cases as belows,
Case 1: Your shipping area is remote location for DHL. You could find out if your area is remote area or not on DHL the website: raslist.dhl.com/jsp/first.jsp
Case 2: DHL is not allow to use in your area. Like Brazil, AR, Russian ,Kazakhstan. (So we ship via EMS or HK Post)
Case 3: If UPS or DHL are both appliable for your area , we will send it at randomly.
Good news for Russian customers, though DHL, UPS, Fedex etc express are unavailable to deliver to Russia in our area, we choose eEMS(EMS upraded version) to ship parcel by default, safe, fast, with better ability of customs clearance(Russia Customs is strictest in the world). Delivery within about 5-10 working days by e-EMS.
Case 4, Via HK post (mostly Spain prefer by HK post)
Except all of 4 cases, If your address is remote area for us, you should add extra shipping fees for DHL/ UPS/EMS/Fedex etc(welcome to consult our Pre-sales).
Above All, if our dear customer have its own ideas on the shipping method and declared value request, please leave message on the order, or consult our pre-sales.
